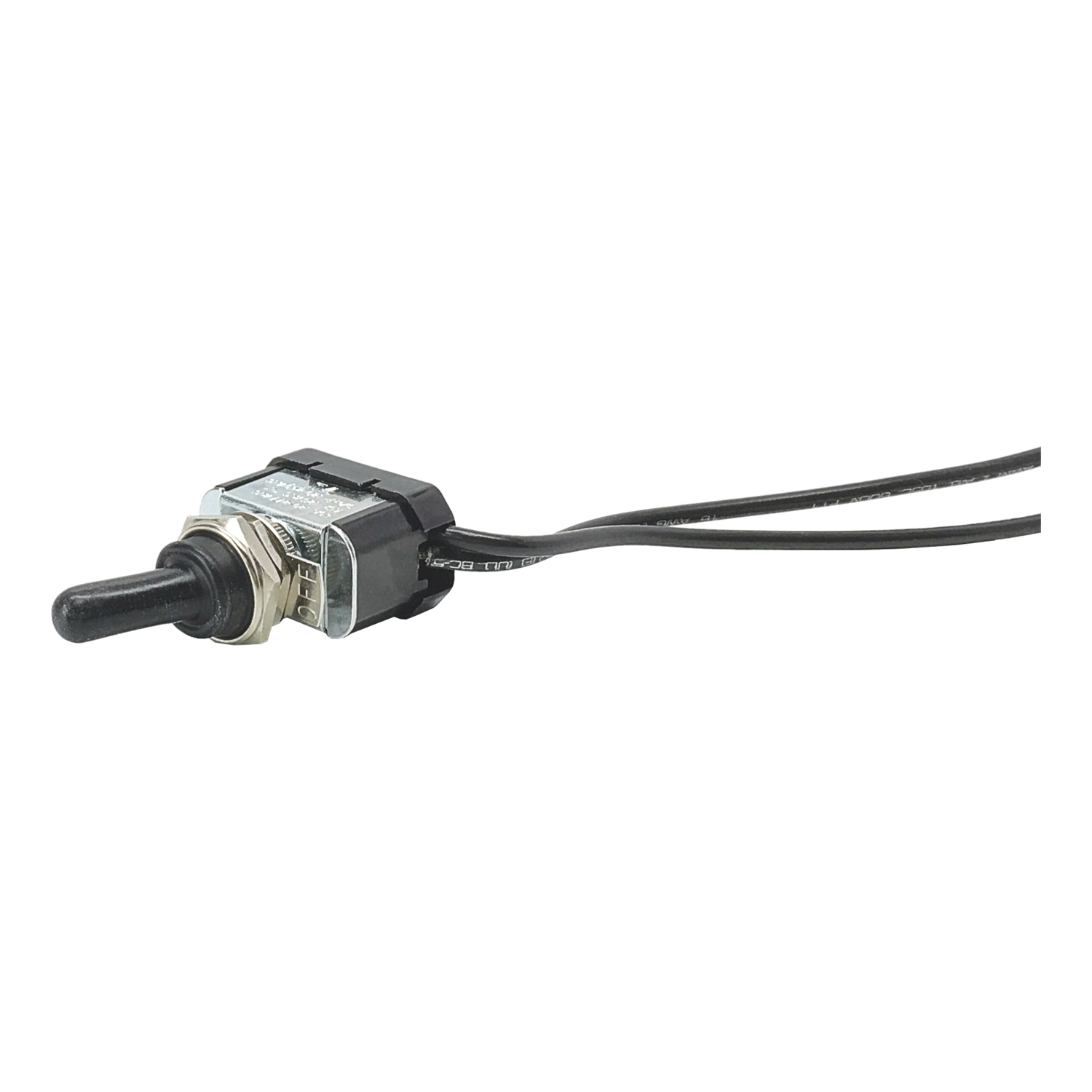

2FA52-73

Active

Carling Technologies

SWITCH TOGGLE 15A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	2FA52-73

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Current Rating (Amps)	15 A
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	65.6 °C
Operating Temperature [Min]	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Voltage Rating - AC	125 V

Part	Voltage Rating - AC	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Current Rating (Amps)	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Bushing Thread	Electrical Life
Carling Technologies 2FA52-73	125 V	Non-Illuminated	65.6 °C	-17.8 °C	Standard Round	15 A	17.45 mm	12.7 mm	15/32-32	50000 Cycles
Carling Technologies 2FA52-78	125 V	Non-Illuminated	65.6 °C	-17.8 °C	Standard Round	15 A	17.45 mm	12.7 mm	15/32-32	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	11	$ 10.06

General part information

Toggle Switch Panel Mount
