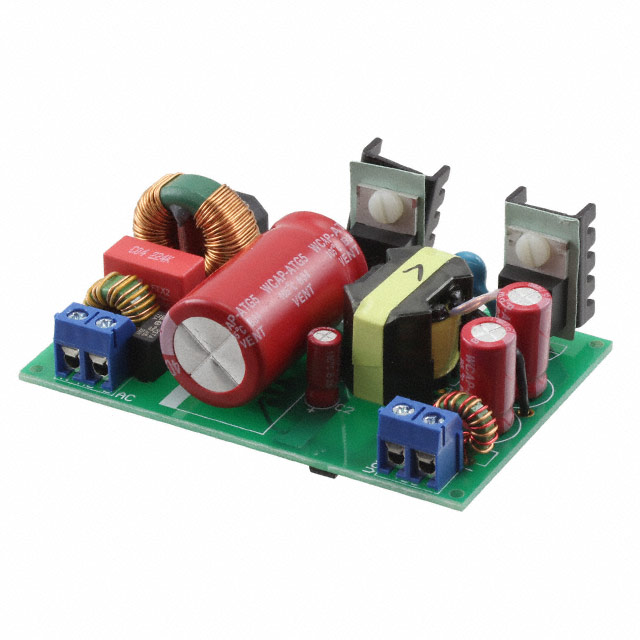

AP3301EV1
ActiveDiodes Inc
EVAL BOARD FOR AP3301
Deep-Dive with AI
Search across all available documentation for this part.
AP3301EV1
ActiveDiodes Inc
EVAL BOARD FOR AP3301
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP3301EV1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 3.5 A |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 42 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Utilized IC / Part | AP3301 |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 59.82 | |
Description
General part information
AP3301 Series
AP3301 - AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
