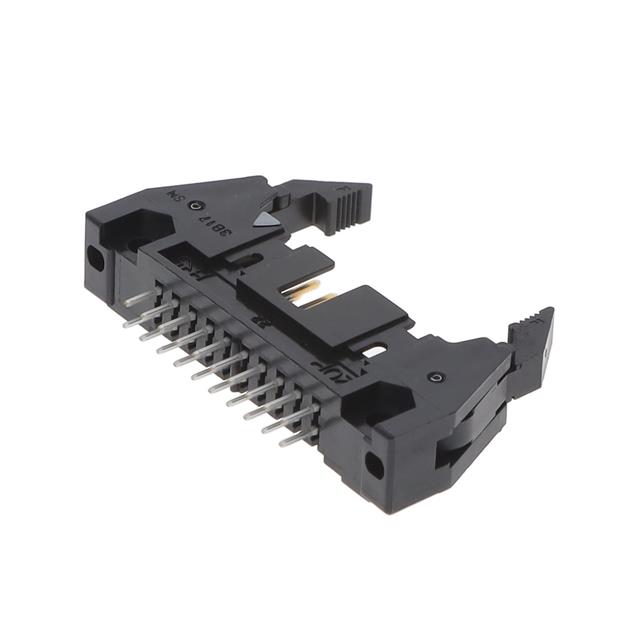

HIF3BAF-20PA-2.54DSA(63)

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LATCH & EJECT, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3BAF-20PA-2.54DSA(63)

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LATCH & EJECT, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3BAF-20PA-2.54DSA(63)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.701 "
Insulation Height	17.8 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

HIF3BAF Series

Part	Contact Material	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Current Rating (Amps)	Contact Finish - Mating	Insulation Height	Insulation Height	Style	Connector Type	Fastening Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Shape	Contact Type	Voltage Rating	Termination	Shrouding	Number of Rows	Material Flammability Rating	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Features	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length
Hirose Electric USA, Inc. HIF3BAF-10PA-2.54DS(63)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin	Varies by Wire Gauge	Gold	0.335 "	8.51 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.118 in	3 mm	85 °C	-55 °C	2 çm	78.7 çin	10	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole Right Angle	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All
Hirose Electric USA, Inc. HIF3BAF-60PA-2.54DS(63)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin	Varies by Wire Gauge	Gold	0.335 "	8.51 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.118 in	3 mm	85 °C	-55 °C	2 çm	78.7 çin	60	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole Right Angle	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All
Hirose Electric USA, Inc. HIF3BAF-60PA-2.54DSA(63)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin	Varies by Wire Gauge	Gold	0.701 "	17.8 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.13 in	3.3 mm	85 °C	-55 °C	2 çm	78.7 çin	60	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All	Keying Slot
Hirose Electric USA, Inc. HIF3BAF-40PA-2.54DS(63)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin	Varies by Wire Gauge	Gold	0.335 "	8.51 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.118 in	3 mm	85 °C	-55 °C	2 çm	78.7 çin	40	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole Right Angle	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All
Hirose Electric USA, Inc. HIF3BAF-40PA-2.54WB(71)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin		Gold	0.335 "	8.51 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.118 in	3 mm	85 °C	-55 °C	2 çm	78.7 çin	40	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole Right Angle	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All		6 mm	0.236 in
Hirose Electric USA, Inc. HIF3BAF-20PA-2.54DSA(71)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin		Gold	0.701 "	17.8 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.13 in	3.3 mm	85 °C	-55 °C	2 çm	78.7 çin	20	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All	Keying Slot	6 mm	0.236 in	16.7 mm	0.657 in
Hirose Electric USA, Inc. HIF3BAF-20PA-2.54DSA(63)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin	Varies by Wire Gauge	Gold	0.701 "	17.8 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.13 in	3.3 mm	85 °C	-55 °C	2 çm	78.7 çin	20	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All	Keying Slot
Hirose Electric USA, Inc. HIF3BAF-64PA-2.54DS(63)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin	Varies by Wire Gauge	Gold	0.335 "	8.51 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.118 in	3 mm	85 °C	-55 °C	2 çm	78.7 çin	64	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole Right Angle	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All
Hirose Electric USA, Inc. HIF3BAF-50PA-2.54DSA(63)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin	Varies by Wire Gauge	Gold	0.701 "	17.8 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.13 in	3.3 mm	85 °C	-55 °C	2 çm	78.7 çin	50	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All	Keying Slot
Hirose Electric USA, Inc. HIF3BAF-34PA-2.54DS(63)	Brass	Polybutylene Terephthalate (PBT)	0.203 Ám	8 Áin	Tin	Varies by Wire Gauge	Gold	0.335 "	8.51 mm	Board to Cable/Wire	Header	Latch Lock/Eject Hooks	0.118 in	3 mm	85 °C	-55 °C	2 çm	78.7 çin	34	Square	Male Pin	200 V	Solder	Shrouded - 4 Wall	2	UL94 V-0	Through Hole Right Angle	2.54 mm	0.1 in	Black	0.1 in	2.54 mm	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.23
		10	$ 2.47
		80	$ 1.96
		440	$ 1.88

Description

General part information

HIF3BAF Series

Connector Header Through Hole 20 position 0.100" (2.54mm)
