1302E 0101640

Active

Belden Inc.

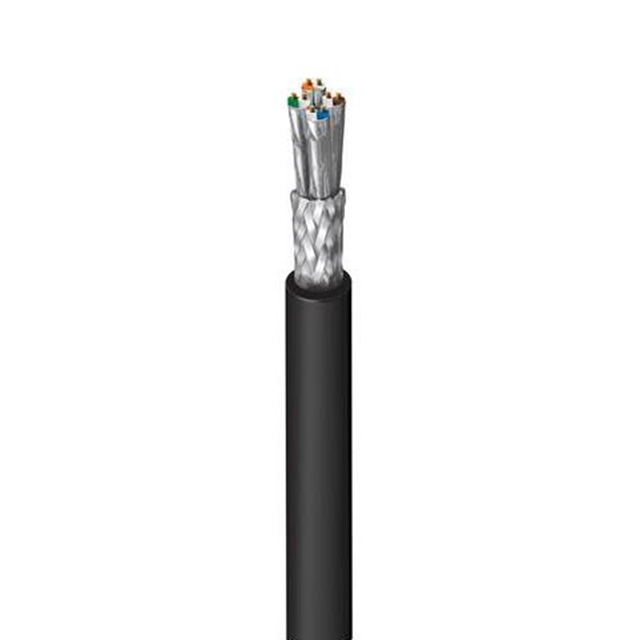

CATSNAKE CAT 6A S/FTP PVC

Search across all available documentation for this part.

Active

Belden Inc.

CATSNAKE CAT 6A S/FTP PVC

Technical Specifications

Parameters and characteristics for this part

Specification	1302E 0101640

Cable Type	Multi-Pair, Cat6a
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	1640 ft
Length	499.9 m
Number of Conductors	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Coverage	80 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	Ethernet, Audio
Voltage	72 V
Wire Gauge	24 AWG

Part	Shield Type	Conductor Insulation	Conductor Material	Shield Material	Jacket Color	Features	Usage	Jacket (Insulation) Material	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Voltage	Length	Length	Wire Gauge	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
Belden Inc. 1302E 0101640	Braid Foil	Foam Polyethylene (FPE)	Copper Bare	Aluminum Polyester Copper Tinned	Black	Drain Wire	Audio Ethernet	Poly-Vinyl Chloride (PVC)	80 % 100 %	32 AWG	7	8	72 V	1640 ft	499.9 m	24 AWG	Multi-Pair Cat6a	-30 ░C	60 °C
Belden Inc. 1302E 010500	Braid Foil	Foam Polyethylene (FPE)	Copper Bare	Aluminum Polyester Copper Tinned	Black	Drain Wire	Audio Ethernet	Poly-Vinyl Chloride (PVC)	80 % 100 %	32 AWG	7	8	72 V			24 AWG	Multi-Pair Cat6a	-30 ░C	60 °C	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 1.98

General part information

8 (4 Pair) Conductor Multi-Pair, Cat6a Cable Black 24 AWG Foil, Braid 1640.0' (499.9m)
