DS12885+

Active

Analog Devices Inc./Maxim Integrated

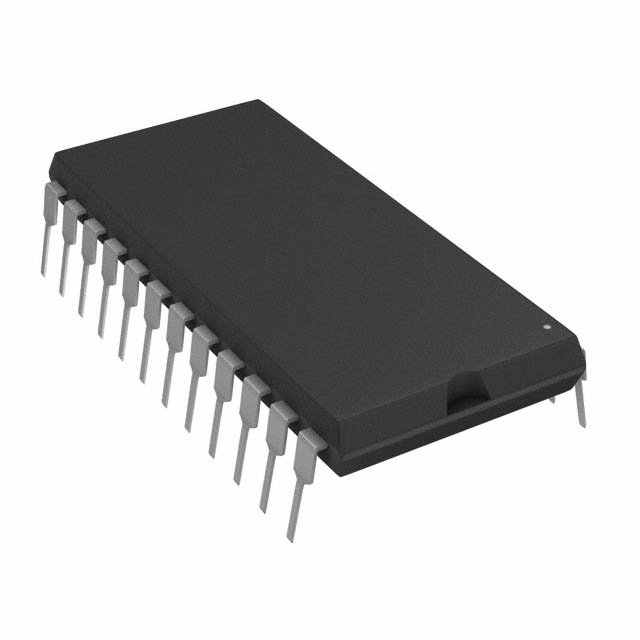

IC RTC CLK/CALENDAR PAR 24DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTips for Writing Bulletproof Real-Time Clock Control Code Datasheet

DS12885+

Active

Analog Devices Inc./Maxim Integrated

IC RTC CLK/CALENDAR PAR 24DIP

Deep-Dive with AI

DocumentsTips for Writing Bulletproof Real-Time Clock Control Code Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS12885+

Current - Timekeeping (Max)	15 mA
Features	Alarm, Square Wave Output, Leap Year, Daylight Savings, NVSRAM
Interface	Parallel
Memory Size	114 B
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	24-DIP
Package / Case	0.6 in
Package / Case	15.24 mm
Supplier Device Package	24-PDIP
Time Format	HH:MM:SS (12/24 hr)
Type	Clock/Calendar
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

DS12885 Series

Part	Package / Case	Package / Case	Package / Case	Memory Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Time Format	Features	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Timekeeping (Max)	Interface	Mounting Type	Type	Package / Case [custom]	Package / Case [custom]
Analog Devices Inc./Maxim Integrated DS12885N	24-DIP	0.6 in	15.24 mm	114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	24-PDIP	85 °C	-40 °C	15 mA	Parallel	Through Hole	Clock/Calendar
Analog Devices Inc./Maxim Integrated DS12885+	24-DIP	0.6 in	15.24 mm	114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	24-PDIP	70 °C	0 °C	15 mA	Parallel	Through Hole	Clock/Calendar
Analog Devices Inc./Maxim Integrated DS12885T	32-TQFP			114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	32-TQFP (7x7)	70 °C	0 °C	15 mA	Parallel	Surface Mount	Clock/Calendar
Analog Devices Inc./Maxim Integrated DS12885SN+T&R	24-SOIC			114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	24-SOIC	85 °C	-40 °C	15 mA	Parallel	Surface Mount	Clock/Calendar	7.5 mm	0.295 in
Analog Devices Inc./Maxim Integrated DS12885Q+T&R	28-LCC (J-Lead)			114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	28-PLCC (11.51x11.51)	70 °C	0 °C	15 mA	Parallel	Surface Mount	Clock/Calendar
Analog Devices Inc./Maxim Integrated DS12885Q	28-LCC (J-Lead)			114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	28-PLCC (11.51x11.51)	70 °C	0 °C	15 mA	Parallel	Surface Mount	Clock/Calendar
Analog Devices Inc./Maxim Integrated DS12885QN/T&R	28-LCC (J-Lead)			114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	28-PLCC (11.51x11.51)	85 °C	-40 °C	15 mA	Parallel	Surface Mount	Clock/Calendar
Analog Devices Inc./Maxim Integrated DS12885S/T&R	24-SOIC			114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	24-SOIC	70 °C	0 °C	15 mA	Parallel	Surface Mount	Clock/Calendar	7.5 mm	0.295 in
Analog Devices Inc./Maxim Integrated DS12885N+	24-DIP	0.6 in	15.24 mm	114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	24-PDIP	85 °C	-40 °C	15 mA	Parallel	Through Hole	Clock/Calendar
Analog Devices Inc./Maxim Integrated DS12885SN	24-SOIC			114 B	4.5 V	5.5 V	HH:MM:SS (12/24 hr)	Alarm Daylight Savings Leap Year NVSRAM Square Wave Output	24-SOIC	85 °C	-40 °C	15 mA	Parallel	Surface Mount	Clock/Calendar	7.5 mm	0.295 in
