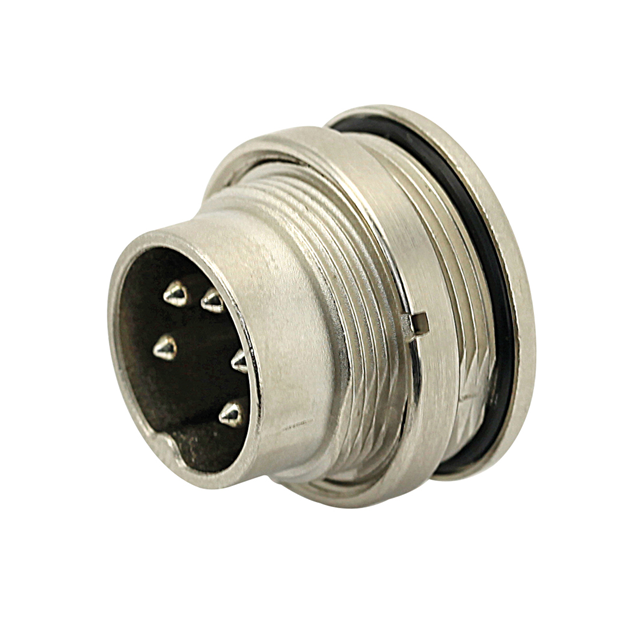

C091 11C012 000 2

Active

Amphenol Sine Systems Corp

REAR MOUNTING MALE METAL RECEPTA

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

REAR MOUNTING MALE METAL RECEPTA

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11C012 000 2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP67, IP65
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-12
Shielding	Shielded
Type	For Male Pins

Part	Connector Type	Orientation	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Shell Size - Insert	Shielding	Contact Type	Ingress Protection	Shell Finish	Material Flammability Rating	Contact Size	Housing Color	Number of Positions	Insert Material	Note	Contact Shape	Type
Amphenol Sine Systems Corp C091 11C012 000 2	Receptacle Housing	Keyed	Zinc Die Cast	100 °C	-40 °C	Bulkhead - Front Side Nut	M16-12	Shielded	Crimp	IP65 IP67	Nickel	UL94 V-0	1 mm	Silver	12	Thermoplastic	Contacts Not Included	Circular	For Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 6.67

General part information

12 Position Circular Connector Receptacle Housing Panel Mount
