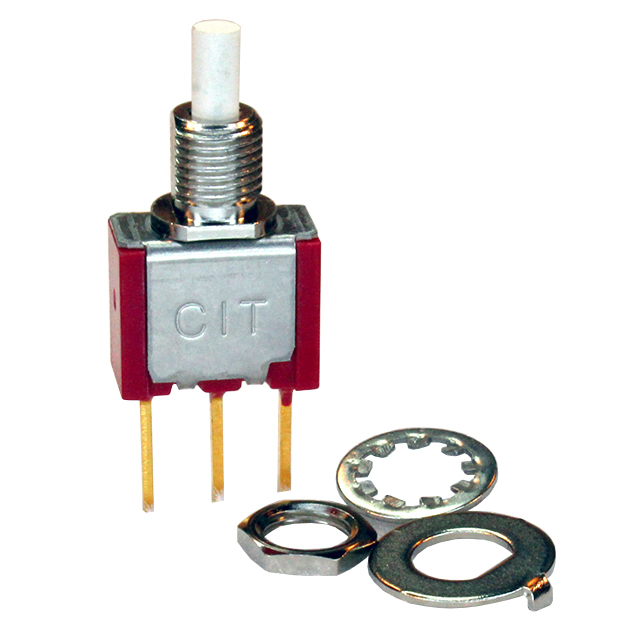

ANP11F9CGE
ActiveCIT Relay and Switch
SWITCH PB SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANP11F9CGE
ActiveCIT Relay and Switch
SWITCH PB SPDT 3A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANP11F9CGE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPDT |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 3 A |
| Electrical Life | 50000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.22 | |
| 10 | $ 2.78 | |||
| 25 | $ 2.62 | |||
| 50 | $ 2.51 | |||
| 200 | $ 2.29 | |||
| 400 | $ 2.19 | |||
| 600 | $ 2.14 | |||
| 1000 | $ 2.07 | |||
Description
General part information
ANP11 Series
Pushbutton Switch SPDT Standard Panel Mount, Rear
