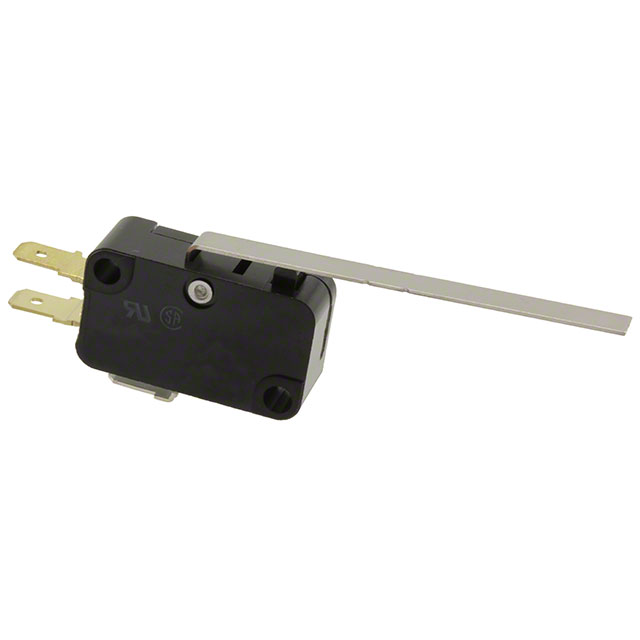

V-10G3-1C25-K

Obsolete

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

V-10G3-1C25-K

Obsolete

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 10A 250V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V-10G3-1C25-K

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	100 mA, 10 A
Differential Travel	2.8 mm
Differential Travel	0.11 in
Electrical Life	300000 Cycles
Ingress Protection	IP40
Mechanical Life	50000000 Cycles
Mounting Type	Chassis Mount
Operating Force	70 gf
Operating Position	0.6 in
Operating Position	15.2 mm
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	2 mm
Overtravel	0.079 in
Pretravel	0.354 in
Pretravel	9 mm
Release Force	6.118 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

V-10 Series

Part	Release Force	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Ingress Protection	Electrical Life	Pretravel	Pretravel	Voltage Rating - DC	Operating Force	Termination Style	Operating Position	Operating Position	Overtravel	Overtravel	Mounting Type	Differential Travel	Differential Travel	Actuator Type	Circuit	Voltage Rating - AC	Termination Style	Current Rating (Amps)
Omron Electronics Inc-EMC Div V-10-1C5	50 gf	50000000 Cycles	-25 °C	80 C	On-Mom	IP40	300000 Cycles	0.047 in	1.2 mm	125 VDC	200 gf	Quick Connect - 0.250" (6.3mm)	0.579 in	14.7 mm	0.04 in	1 mm	Chassis Mount	0.016 "	0.4 mm	Round (Pin Plunger)	SPDT	250 V
Omron Electronics Inc-EMC Div V-10-3A5	50 gf	50000000 Cycles	-25 °C	80 C	Off-Mom	IP40	300000 Cycles	0.047 in	1.2 mm	125 VDC	200 gf	Quick Connect Solder	0.579 in	14.7 mm	0.04 in	1 mm	Chassis Mount	0.016 "	0.4 mm	Round (Pin Plunger)	SPST-NO	250 V	0.187 in 4.7 mm
Omron Electronics Inc-EMC Div V-10G5-1A5-K	50 gf	50000000 Cycles	-25 °C	80 C	On-Mom	IP40	300000 Cycles	0.063 in	1.6 mm	125 VDC	240 gf	Quick Connect Solder	0.815 in	20.7 mm	0.03 in	0.76 mm	Chassis Mount	0.025 in	0.6 mm	Lever Roller	SPDT	250 V	0.187 in 4.7 mm	10 A 100 mA
Omron Electronics Inc-EMC Div V-10G3-1C25-K	6.118 gf	50000000 Cycles	-25 °C	80 C	On-Mom	IP40	300000 Cycles	0.354 in	9 mm	125 VDC	70 gf	Quick Connect - 0.187" (4.7mm)	0.6 in	15.2 mm	0.079 in	2 mm	Chassis Mount	0.11 in	2.8 mm	Lever Straight	SPDT	250 V		10 A 100 mA
Omron Electronics Inc-EMC Div V-10G3-1A4-K		50000000 Cycles	-25 °C	80 C	On-Mom	IP40	300000 Cycles	0.354 in	9 mm	125 VDC	35 gf	Quick Connect Solder	0.6 in	15.2 mm	0.125 in	3.2 mm	Chassis Mount	0.11 in	2.8 mm	Lever Straight	SPDT	250 V	0.187 in 4.7 mm	10 A 100 mA
Omron Electronics Inc-EMC Div V-10G5-1B5-K	50 gf	50000000 Cycles	-25 °C	80 C	On-Mom	IP40	300000 Cycles	0.063 in	1.6 mm	125 VDC	240 gf	Screw Terminal	0.815 in	20.7 mm	0.03 in	0.76 mm	Chassis Mount	0.025 in	0.6 mm	Lever Roller	SPDT	250 V		10 A 100 mA
Omron Electronics Inc-EMC Div V-10G2-1A4-K	6.118 gf	50000000 Cycles	-25 °C	80 C	On-Mom	IP40	300000 Cycles	0.157 in	4 mm	125 VDC	60 gf	Quick Connect Solder	0.6 in	15.2 mm	0.062 in	1.6 mm	Chassis Mount	0.06 "	1.5 mm	Lever Straight	SPDT	250 V	0.187 in 4.7 mm	10 A 100 mA
Omron Electronics Inc-EMC Div V-10-1C24	20 gf	50000000 Cycles	-25 °C	80 C	On-Mom	IP40	300000 Cycles	0.047 in	1.2 mm	125 VDC	100 gf	Quick Connect - 0.187" (4.7mm)	0.579 in	14.7 mm	0.04 in	1 mm	Chassis Mount	0.016 "	0.4 mm	Round (Pin Plunger)	SPDT	250 V
Omron Electronics Inc-EMC Div V-10G-1B4-K	20 gf	50000000 Cycles	-25 °C	80 C	On-Mom	IP40	300000 Cycles	0.047 in	1.2 mm	125 VDC	100 gf	Screw Terminal	0.579 in	14.7 mm	0.04 in	1 mm	Chassis Mount	0.016 "	0.4 mm	Round (Pin Plunger)	SPDT	250 V		10 A 100 mA
Omron Electronics Inc-EMC Div V-10G6-1C24-K	6.118 gf	50000000 Cycles	-25 °C	80 C	On-Mom	IP40	300000 Cycles	0.157 in	4 mm	125 VDC	60 gf	Quick Connect - 0.187" (4.7mm)	0.815 in	20.7 mm	0.062 in	1.6 mm	Chassis Mount	0.06 "	1.5 mm	Lever Roller	SPDT	250 V		10 A 100 mA
