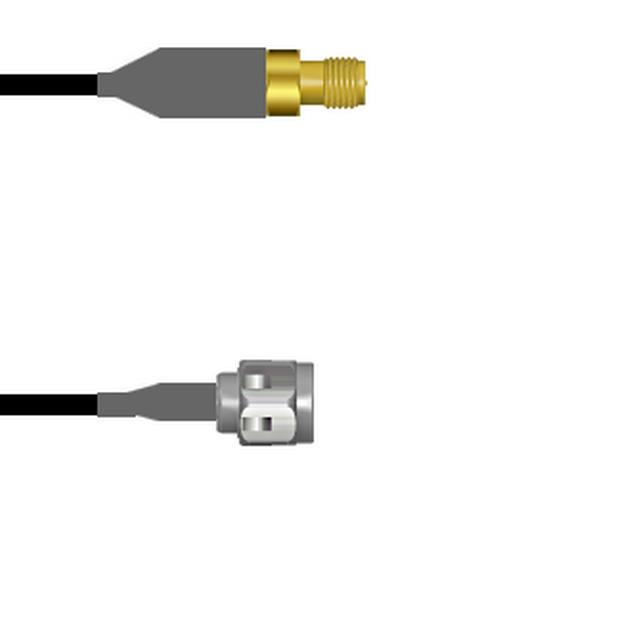

Q-7002K000M2.5M
ActiveAmphenol Custom Cable
CBL ASSY RPSMA-NTYPE JCK-PL 8.2'
Deep-Dive with AI
Search across all available documentation for this part.
Q-7002K000M2.5M
ActiveAmphenol Custom Cable
CBL ASSY RPSMA-NTYPE JCK-PL 8.2'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-7002K000M2.5M |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 240 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 8.2 ' |
| Length | 98.4 in |
| Length | 2.5 m |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 93.38 | |
| 25 | $ 87.04 | |||
| 50 | $ 80.69 | |||
| 100 | $ 75.24 | |||
| 250 | $ 70.71 | |||
Description
General part information
Q-7002K0 Series
Cable Assembly Coaxial RP-SMA to N-Type LMR 240 98.4" (2.5m) 8.2'
