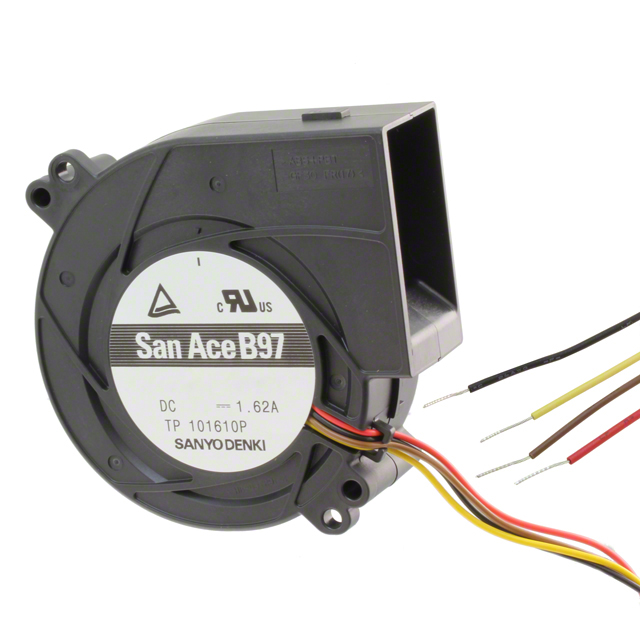

109BM12P2M01

Active

Sanyo Denki America Inc.

FAN BLOWER 97.2X33MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

109BM12P2M01

Active

Sanyo Denki America Inc.

FAN BLOWER 97.2X33MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109BM12P2M01

Air Flow	0.574 m³/min
Air Flow	20.5 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.26 A
Fan Type	Blower
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.12 W
RPM	2700 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	97.2 mm
Size / Dimension [z]	94.5 mm
Static Pressure	119.1 Pa
Static Pressure	0.478 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.386 lb
Weight	175.09 g
Width [y]	33 mm

109BM12 Series

Part	Fan Type	Size / Dimension [x]	Size / Dimension	Size / Dimension [z]	Lifetime @ Temp.	Features	Material - Blade	Approval Agency	Material - Frame	Voltage - Rated	Power (Watts)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Bearing Type	RPM	Width [y]	Static Pressure	Static Pressure	Air Flow	Air Flow	Weight	Weight	Noise	Size / Dimension [y]
Sanyo Denki America Inc. 109BM12P2M01	Blower	97.2 mm	Rectangular/Rounded	94.5 mm	40000 Hrs	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	CSA TUV UL	Plastic	12 VDC	3.12 W	4 Wire Leads	-20 °C	70 °C	-20 C	70 °C	7 V	13.8 VDC	0.26 A	Ball	2700 RPM	33 mm	119.1 Pa	0.478 in H2O	0.574 m³/min	20.5 CFM	0.386 lb	175.09 g
Sanyo Denki America Inc. 109BM12MD2-1	Blower	97.2 mm	Rectangular/Rounded	94.5 mm	40000 Hrs	Locked Rotor Sensor	Plastic	CSA TUV UL	Plastic	12 VDC	3.12 W	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	7 V	13.8 VDC	0.26 A	Ball	2700 RPM	33 mm	119.1 Pa	0.478 in H2O	0.574 m³/min	20.5 CFM	0.386 lb	175.09 g
Sanyo Denki America Inc. 109BM12MA2-1	Blower	97.2 mm	Rectangular/Rounded	94.5 mm	40000 Hrs		Plastic	CSA TUV UL	Plastic	12 VDC	3.12 W	2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	7 V	13.8 VDC	0.26 A	Ball	2700 RPM	33 mm	119.1 Pa	0.478 in H2O	0.574 m³/min	20.5 CFM	0.386 lb	175.09 g
Sanyo Denki America Inc. 109BM12GD2-1	Blower	97.2 mm	Rectangular/Rounded	94.5 mm	40000 Hrs	Locked Rotor Sensor	Plastic	CSA TUV UL	Plastic	12 VDC	7.2 W	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	7 V	13.8 VDC	600 mA	Ball	3800 RPM	33 mm	281 Pa	1.129 in H2O	0.809 mł/min	28.9 CFM	0.386 lb	175.09 g	51.5 dB
Sanyo Denki America Inc. 109BM12MC2-1	Blower	97.2 mm			40000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	Plastic	CSA TUV UL	Plastic	12 VDC	3.12 W	3 Wire Leads	-20 °C	70 °C	-20 C	70 °C	7 V	13.8 VDC	0.26 A	Ball	2700 RPM	33 mm	119.1 Pa	0.478 in H2O	0.574 m³/min	20.5 CFM	0.386 lb	175.09 g		94.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	64	$ 22.61

Description

General part information

109BM12 Series

Fan Blower 12VDC Rectangular/Rounded - 97.2mm L x 94.5mm H Ball 20.5 CFM (0.574mł/min) 4 Wire Leads
