A1TAAT0-H005PN-0000

Active

ODU

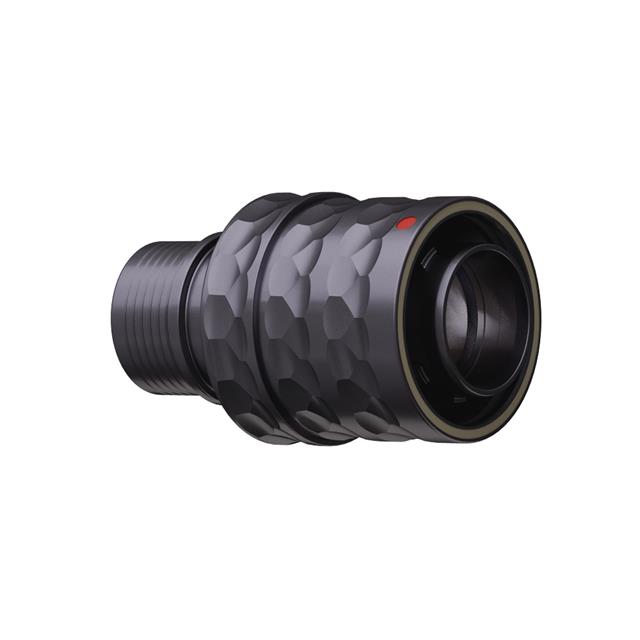

ODU AMC SERIES T BREAK-AWAY PLUG

Search across all available documentation for this part.

Active

ODU

ODU AMC SERIES T BREAK-AWAY PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	A1TAAT0-H005PN-0000

Cable Opening [custom]	14.6 mm
Cable Opening [custom]	0.575 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Push-Pull
Features	Coupling Nut
Ingress Protection	IP68, IP69K
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Tin Nickel
Shell Material	Aluminum
Shell Size - Insert	12
Shielding	Shielded
Termination	Crimp
Voltage Rating	50 V

Part	Mounting Type	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Shell Material	Ingress Protection	Contact Material	Connector Type	Termination	Shell Finish	Voltage Rating	Fastening Type	Features	Orientation	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Primary Material	Shell Size - Insert	Shielding	Number of Positions
ODU A1TAAT0-H005PN-0000	Free Hanging (In-Line)	UL94 V-0	14.6 mm	0.575 in	Gold	-65 ░C	347 °F	Polyetheretherketone (PEEK)	Aluminum	IP68 IP69K	Copper Alloy	Male Pins Plug	Crimp	Tin Nickel	50 V	Push-Pull	Coupling Nut	A	13 A	1.27 µm	50 µin	Silver	Metal	12	Shielded
ODU A1TAAT0-HM18PN-0000	Free Hanging (In-Line)	UL94 V-0	14.6 mm	0.575 in	Gold	-65 ░C	347 °F	Polyetheretherketone (PEEK)	Aluminum	IP68 IP69K	Copper Alloy	Male Pins Plug	Crimp	Tin Nickel	50 V	Push-Pull	Coupling Nut	A	5 A 7.5 A	1.27 µm	50 µin	Silver	Metal	12	Shielded	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Crimp
