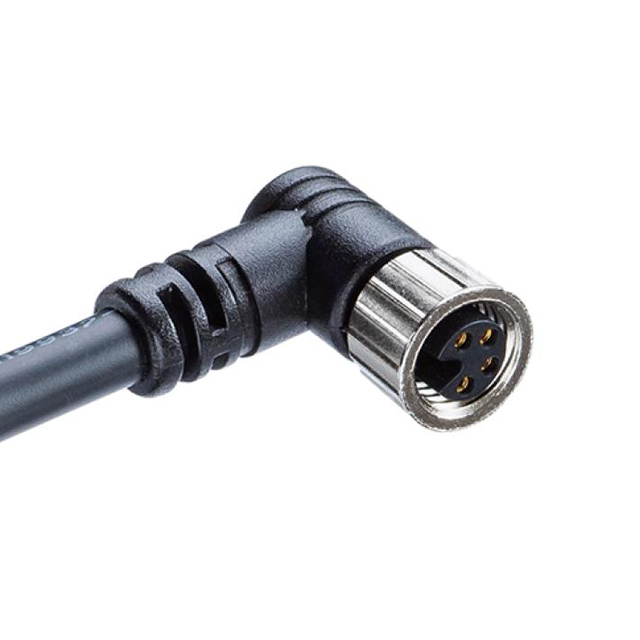

8H-05AFFM-SR7A01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 3A+1.5A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVER

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 3A+1.5A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVER

Technical Specifications

Parameters and characteristics for this part

Specification	8H-05AFFM-SR7A01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions [custom]	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	Cable Material	1st Connector Type	Usage	1st Connector Mounting Type	1st Connector Number of Positions Loaded	Assembly Configuration	1st Connector Shell Size - Insert	1st Connector Orientation [custom]	Ingress Protection	2nd Connector Type	Color	Shielding	1st Connector Gender	Cable Type	1st Connector Number of Positions	Length [x]	Length [x]	1st Connector Number of Positions [custom]
Amphenol LTW 8H-05AFFM-SL7A10	Polyvinyl Chloride (PVC)	Receptacle	Industrial Environments	Free Hanging (In-Line)	All	Standard	M8	Keyed	IP67 - Dust Tight Waterproof	Wire Leads	Black	Unshielded	Female Sockets	Round	5
Amphenol LTW 8H-05AFFM-SL7A01	Polyvinyl Chloride (PVC)	Receptacle	Industrial Environments	Free Hanging (In-Line)	All	Standard	M8	Keyed	IP67 - Dust Tight Waterproof	Wire Leads	Black	Unshielded	Female Sockets	Round	5	1 m	3.28 ft
Amphenol LTW 8H-05AFFM-SR7A01	Polyvinyl Chloride (PVC)	Receptacle Right Angle	Industrial Environments	Free Hanging (In-Line)	All	Standard	M8	Keyed	IP67 - Dust Tight Waterproof	Wire Leads	Black	Unshielded	Female Sockets	Round	5	1 m	3.28 ft	3
Amphenol LTW 8H-05AFFM-SR7A02	Polyvinyl Chloride (PVC)	Receptacle Right Angle	Industrial Environments	Free Hanging (In-Line)	All	Standard	M8	Keyed	IP67 - Dust Tight Waterproof	Wire Leads	Black	Unshielded	Female Sockets	Round	5	2 m	6.56 ft	3
Amphenol LTW 8H-05AFFM-SR7A03	Polyvinyl Chloride (PVC)	Receptacle Right Angle	Industrial Environments	Free Hanging (In-Line)	All	Standard	M8	Keyed	IP67 - Dust Tight Waterproof	Wire Leads	Black	Unshielded	Female Sockets	Round	5	3 m	9.84 ft	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
