M39078 SL005

Active

ALPHA WIRE

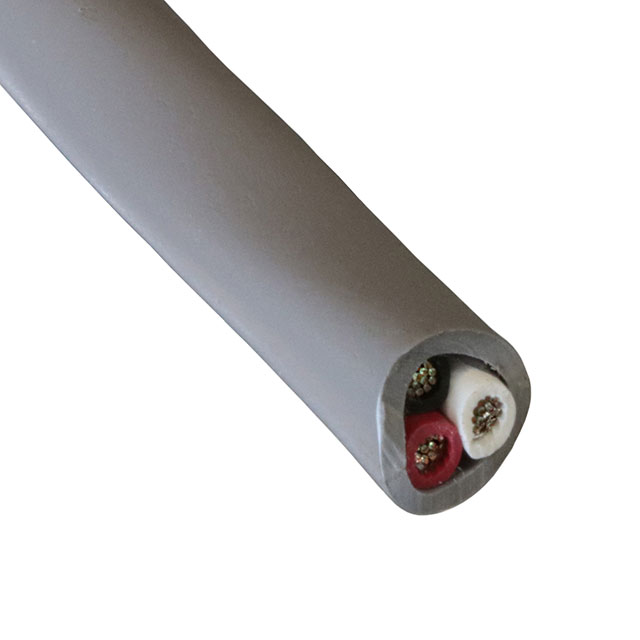

CABLE 3COND 16AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 16AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M39078 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	6.99 mm
Jacket (Insulation) Diameter [diameter]	0.275 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.038 in
Jacket (Insulation) Thickness	0.965 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Voltage	300 V
Wire Gauge	16 AWG

Part	Conductor Material	Conductor Insulation	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket Color	Length	Length
ALPHA WIRE M39078 SL005	Copper Tinned	Poly-Vinyl Chloride (PVC)	16 AWG	-20 C	105 ░C	30.5 m	100 ft	300 V	Poly-Vinyl Chloride (PVC)	0.038 in	0.965 mm	19	0.0117 in	Multi-Conductor	6.99 mm	0.275 in	3	Slate
ALPHA WIRE M39078 SL199	Copper Tinned	Poly-Vinyl Chloride (PVC)	16 AWG	-20 C	105 ░C			300 V	Poly-Vinyl Chloride (PVC)	0.038 in	0.965 mm	19	0.0117 in	Multi-Conductor	6.99 mm	0.275 in	3	Slate	914.4 m	3000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Slate 16 AWG 100.0' (30.5m)
