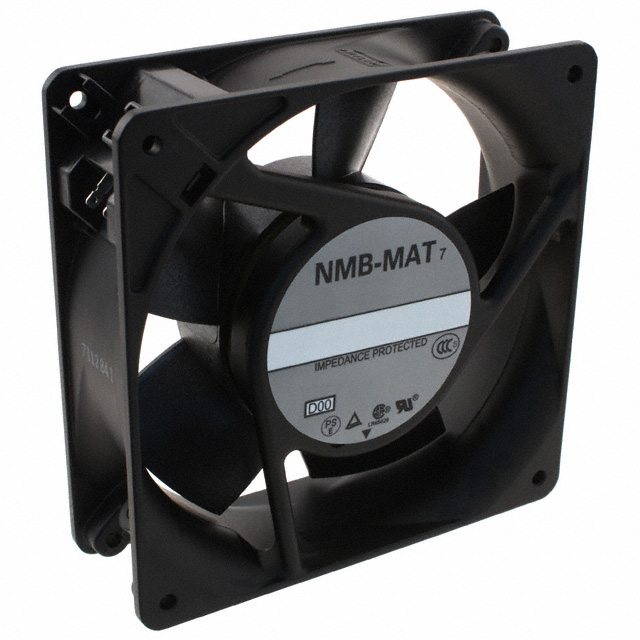

4715FS-12T-B40-D00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 119X38MM 115VAC TERM
Deep-Dive with AI
Search across all available documentation for this part.
4715FS-12T-B40-D00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 119X38MM 115VAC TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4715FS-12T-B40-D00 |
|---|---|
| Air Flow | 2.8 m³/min |
| Air Flow | 100 CFM |
| Approval Agency | CSA, CE, UL, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.17 A |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 42 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 14 Watts |
| RPM | 2800 RPM |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Static Pressure | 72.5 Pa |
| Static Pressure | 0.291 in H2O |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Width [y] | 38 mm |
4715FS Series
| Part | Material - Blade | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Bearing Type | Power (Watts) | Air Flow | Air Flow | Voltage - Rated | RPM | Width [y] | Termination | Noise | Size / Dimension [y] | Size / Dimension [x] | Material - Frame | Static Pressure | Static Pressure | Current Rating (Amps) | Approval Agency | Fan Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 8.8 W | 80 CFM | 2.24 mł/min | 230 VAC | 2300 RPM | 38 mm | 2 Terminals | 36 dB | 119 mm | 119 mm | Aluminum | 0.13 in H2O | 32.5 Pa | 50 mA | CE CSA TUV UL | Tubeaxial |
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 14 Watts | 110 CFM | 3.08 mł/min | 230 VAC | 3100 RPM | 38 mm | 2 Terminals | 45 dB(A) | 119 mm | 119 mm | Aluminum | 0.37 in H2O | 92.2 Pa | CE CSA TUV UL | Tubeaxial | |
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 14 Watts | 100 CFM | 2.8 m³/min | 115 VAC | 2800 RPM | 38 mm | 2 Terminals | 42 dB | 119 mm | 119 mm | Aluminum | 0.291 in H2O | 72.5 Pa | 0.17 A | CE CSA TUV UL | Tubeaxial |
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 14.5 W | 90 CFM | 2.52 mł/min | 115 VAC | 2650 RPM | 38 mm | 2 Terminals | 39 dB(A) | 119 mm | 119 mm | Aluminum | 0.22 in H2O | 54.8 Pa | 0.18 A | CE CSA TUV UL | Tubeaxial |
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 14 Watts | 110 CFM | 3.08 mł/min | 230 VAC | 3100 RPM | 38 mm | 2 Wire Leads | 45 dB(A) | 119 mm | 119 mm | Aluminum | 0.37 in H2O | 92.2 Pa | CE CSA TUV UL | Tubeaxial | |
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 9 W | 70 CFM | 1.96 m³/min | 230 VAC | 1900 RPM | 38 mm | 2 Terminals | 33 dB(A) | 119 mm | 119 mm | Aluminum | 0.12 in H2O | 30 Pa | 50 mA | CE CSA TUV UL | Tubeaxial |
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 12 W | 90 CFM | 2.52 mł/min | 230 VAC | 2650 RPM | 38 mm | 2 Terminals | 39 dB(A) | 119 mm | 119 mm | Aluminum | 0.22 in H2O | 54.8 Pa | 0.09 A | CE CSA TUV UL | Tubeaxial |
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 14.4 W | 110 CFM | 3.08 mł/min | 115 VAC | 3100 RPM | 38 mm | 2 Terminals | 45 dB(A) | 119 mm | 119 mm | Aluminum | 0.37 in H2O | 92.2 Pa | 0.19 A | CE CSA TUV UL | Tubeaxial |
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 14 Watts | 100 CFM | 2.8 m³/min | 230 VAC | 3300 RPM | 38 mm | 2 Terminals | 42 dB | 119 mm | 119 mm | Aluminum | 0.28 in H2O | 69.7 Pa | 0.09 A | CE CSA TUV UL | Tubeaxial |
NMB TECHNOLOGIES | Plastic | 70 °C | 70 °C | -10 °C | -10 °C | Ball | 14 Watts | 110 CFM | 3.08 mł/min | 230 VAC | 3100 RPM | 38 mm | 2 Terminals | 45 dB(A) | 119 mm | 119 mm | Aluminum | 0.37 in H2O | 92.2 Pa | CE CSA TUV UL | Tubeaxial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
4715FS Series
Fan Tubeaxial 115VAC Square - 119mm L x 119mm H Ball 100.0 CFM (2.80mł/min) 2 Terminals
