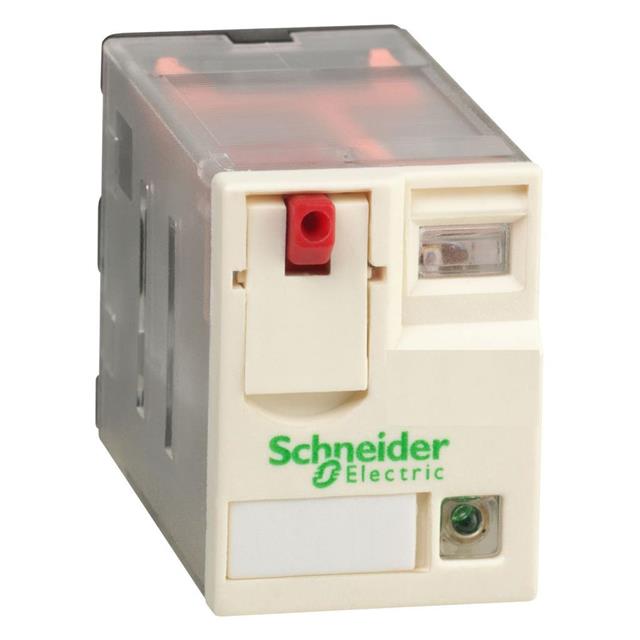

RXM4SOC24D

Active

SQUARE D BY SCHNEIDER ELECTRIC

PLUG IN RELAY, ZELIO RELAY, MINI

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

PLUG IN RELAY, ZELIO RELAY, MINI

Technical Specifications

Parameters and characteristics for this part

Specification	RXM4SOC24D

Approval Agency	CE, IECEE, Lloyd's, GOST, UL, CSA
Coil Current	36.9 mA
Coil Resistance	650 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Test Button, Lighted Indicator
Load - Max Switching	168 W, 1500 VA
Mounting Type	Socketable
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

Part	Coil Resistance	Termination Style	Must Operate Voltage	Contact Form	Features	Mounting Type	Approval Agency	Contact Rating (Current)	Coil Voltage	Load - Max Switching	Operate Time	Release Time	Coil Current	Switching Voltage	Coil Type	Relay Type	Must Release Voltage	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
SQUARE D BY SCHNEIDER ELECTRIC RXM4SOC24D	650 Ohms	Plug In	19.2 VDC	4PDT (4 Form C)	Lighted Indicator Test Button	Socketable	CE CSA GOST IECEE Lloyd's UL	6 A	24 VDC	168 W 1500 VA	20 ms	20 ms	36.9 mA	28 VDC 250 VAC	Non Latching	General Purpose	2.4 VDC	Silver Nickel (AgNi)	-40 °C	55 °C
