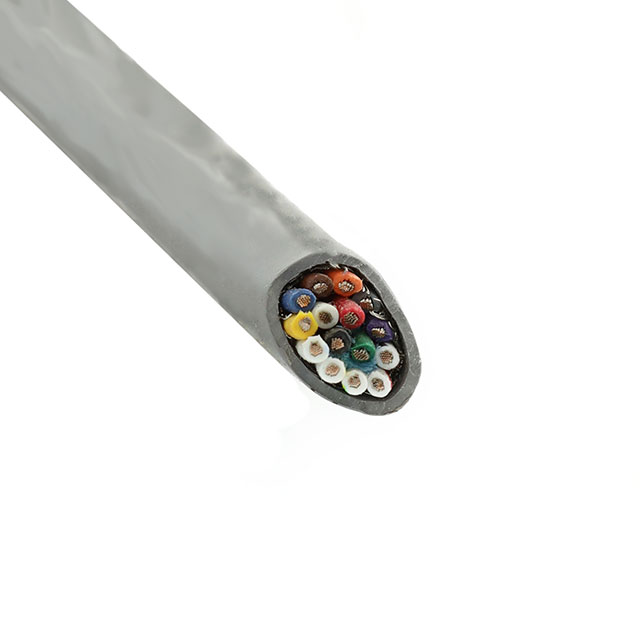

M1135 SL005

Active

ALPHA WIRE

CABLE 15COND 20AWG SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 15COND 20AWG SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M1135 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	0.417 in
Jacket (Insulation) Diameter [diameter]	10.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	15
Ratings	UL Style 2094
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Type	Conductor Material	Jacket (Insulation) Material	Cable Type	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Material	Wire Gauge	Length [x]	Length [x]	Conductor Strand	Shield Coverage	Jacket Color	Voltage
ALPHA WIRE M1135 SL005	0.417 in	10.59 mm	Polyethylene (PE)	Braid	Copper Tinned	Poly-Vinyl Chloride (PVC)	Multi-Conductor	UL Style 2094	0.889 mm	0.035 in	15	Copper Tinned	20 AWG	30.5 m	100 ft	26 34 AWG	90 %	Slate	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10	$ 612.20
Newark	Spool of 100	10	$ 680.02

General part information

15 Conductor Multi-Conductor Cable Slate 20 AWG Braid 100.0' (30.5m)
