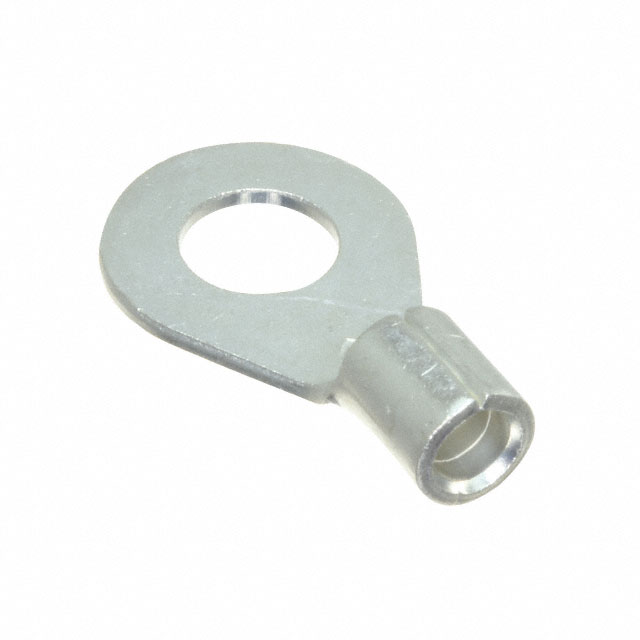

13-14S-W
Active3M (TC)
CONN RING CIRC 10-12AWG #1/4
Deep-Dive with AI
Search across all available documentation for this part.
13-14S-W
Active3M (TC)
CONN RING CIRC 10-12AWG #1/4
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 13-14S-W |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.96 " |
| Length - Overall [x] | 24.38 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.04 in |
| Thickness | 1.02 mm |
| Width - Outer Edges [y] | 0.54 in |
| Width - Outer Edges [y] | 13.72 mm |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.22 | |
Description
General part information
13-14 Series
Ring Terminal Connector 1/4 Stud Circular 10-12 AWG Crimp
Documents
Technical documentation and resources
No documents available
