0348996110

Active

Molex

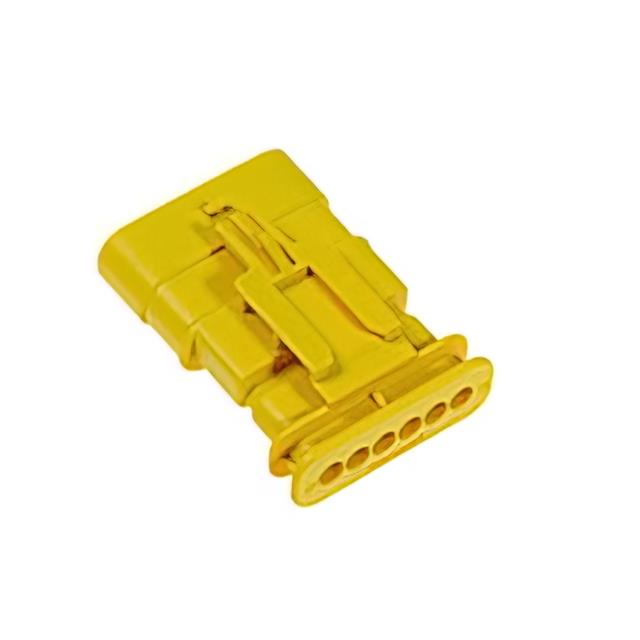

1.2MM SLD ASSY BLD 1X6 11CS YEL

Search across all available documentation for this part.

Active

Molex

1.2MM SLD ASSY BLD 1X6 11CS YEL

Technical Specifications

Parameters and characteristics for this part

Specification	0348996110

null

Part	Mounting Type	Connector Type	Insulation Material	Contact Termination	Number of Positions	Contact Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Features	Pitch [x]	Pitch [x]	Note	Fastening Type
Molex 0348994085	Free Hanging (In-Line)	Plug	Glass Filled Nylon Polyamide (PA) Syndiotactic Polystyrene (SPS)	Crimp	4	Blade Pin	Gray	125 °C	-40 °C	1	Sealed	4 mm	0.157 in	Contacts Not Included	Latch Lock
Molex 0348993121	Free Hanging (In-Line)	Plug		Crimp		Blade Pin	Gray			1	Sealed	4 mm	0.157 in	Contacts Not Included	Latch Lock
Molex 0348996110
Molex 0348996121	Free Hanging (In-Line)	Plug		Crimp	6	Male Pin	Gray	125 °C	-40 °C	1		4 mm	0.157 in		Latch Lock
Molex 0348993021	Free Hanging (In-Line)	Plug		Crimp		Blade Pin	Black			1	Sealed	4 mm	0.157 in	Contacts Not Included	Latch Lock
Molex 0348993111	Free Hanging (In-Line)	Plug	Glass Filled Nylon Polyamide (PA) Syndiotactic Polystyrene (SPS)	Crimp		Blade Pin	Yellow	125 °C	-40 °C	1	Sealed	4 mm	0.157 in		Latch Lock
Molex 0348994026	Free Hanging (In-Line)	Plug	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)	Crimp	4	Blade Pin	Gray	125 °C	-40 °C	1		4 mm	0.157 in	Contacts Not Included	Latch Lock
Molex 0348994082
Molex 0348992011	Free Hanging (In-Line)	Plug		Crimp	2	Blade Pin	Yellow			1	Sealed	4 mm	0.157 in	Contacts Not Included	Latch Lock
Molex 0348993041	Free Hanging (In-Line)	Plug		Crimp		Blade Pin	Gray			1	Sealed	4 mm	0.157 in	Contacts Not Included	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular Connectors - Housings

Technical documentation and resources
