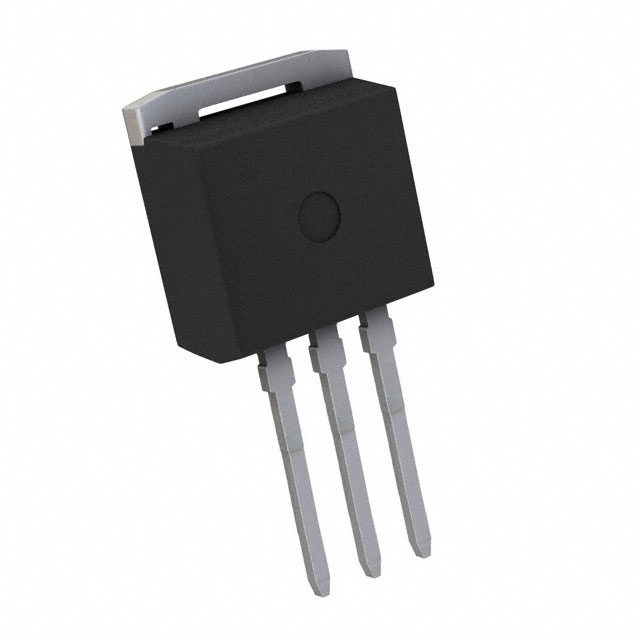

TFC563D

Obsolete

Sanken Electric USA Inc.

SCR 600V HID LAMP AUTO TO220S

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

SCR 600V HID LAMP AUTO TO220S

Technical Specifications

Parameters and characteristics for this part

Specification	TFC563D

Current - Gate Trigger (Igt) (Max) [Max]	30 mA
Current - Hold (Ih) (Max) [Max]	12 mA
Current - Off State (Max) [Max]	1 mA
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-220-3, Short Tab
SCR Type	Standard Recovery
Supplier Device Package	TO-220S
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	600 V
Voltage - On State (Vtm) (Max) [Max]	1.4 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Mounting Type	Voltage - Gate Trigger (Vgt) (Max) [Max]	Package / Case	Current - Off State (Max) [Max]	SCR Type	Voltage - On State (Vtm) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Off State
Sanken Electric USA Inc. TFC563D	125 °C	-40 °C	30 mA	TO-220S	Through Hole	1.5 V	TO-220-3 Short Tab	1 mA	Standard Recovery	1.4 V	12 mA	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR 600 V Standard Recovery Through Hole TO-220S
