A79042-001

Active

Omnetics

18 POSITION DUAL ROW MALE NANO-M

Search across all available documentation for this part.

Active

Omnetics

18 POSITION DUAL ROW MALE NANO-M

Technical Specifications

Parameters and characteristics for this part

Specification	A79042-001

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Natural
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Thermoplastic
Mounting Type	Surface Mount
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.025 in
Pitch - Mating	0.64 mm
Row Spacing - Mating	0.03 in
Row Spacing - Mating	0.76 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Fastening Type	Insulation Height	Insulation Height	Connector Type	Termination	Style	Mounting Type	Contact Finish - Mating	Number of Rows	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Shrouding	Features	Contact Shape	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Material	Row Spacing - Mating	Row Spacing - Mating
Omnetics A79042-001	Push-Pull	0.173 in	4.4 mm	Header	Solder	Board to Cable/Wire	Surface Mount	Gold	2	Male Pin	All	0.025 in	0.64 mm	Shrouded - 4 Wall	Guide Pin	Circular	Beryllium Copper	18	-55 °C	125 °C	1.27 µm	50 µin	Natural	Thermoplastic	0.03 in	0.76 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

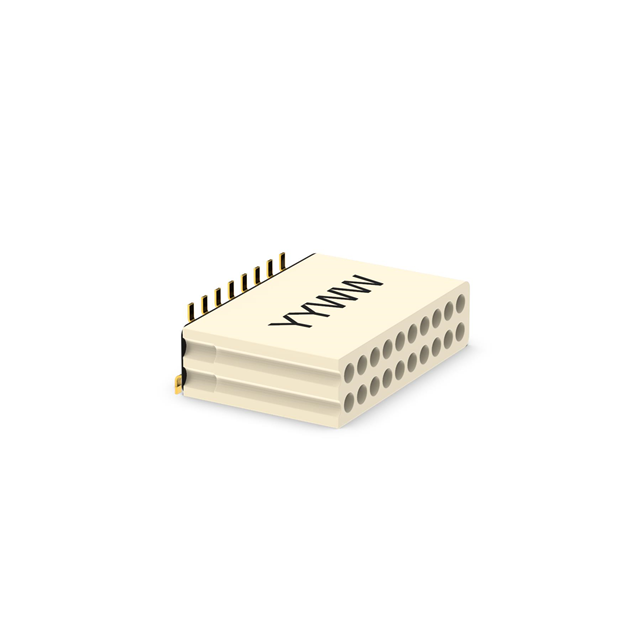

Connector Header Surface Mount 18 position 0.025" (0.64mm)
