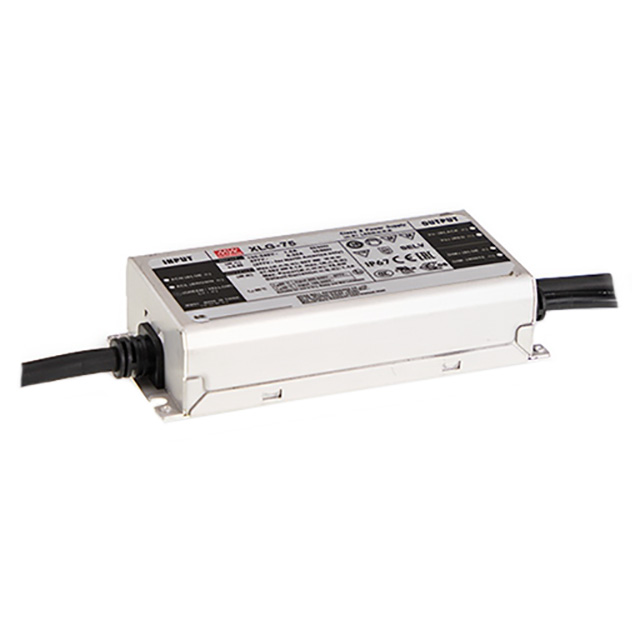

XLG-75-H-A

Active

MEAN WELL USA Inc.

75W CONSTANT POWER MODE LED DRIV

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

75W CONSTANT POWER MODE LED DRIV

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Efficiency	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Voltage - Input (Max) [Max]	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]	Approval Agency	Type	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Topology	Voltage - Input (Min) [Min]	Voltage - Output
MEAN WELL USA Inc. XLG-75-H-A	IP67	90 %	4.2 kV	90 °C	-40 °C	OCP OTP OVP SCP	Chassis Mount	305 VAC	Wire Leads	27 V	56 V	CB CCC CE cURus EAC ENEC RCM	Constant Current	1	75 W	1.4 A	125 mm	32 mm	4.92 in	1.26 in	2.48 in	63 mm	AC DC Converter	100 VAC
MEAN WELL USA Inc. XLG-75-24-A	IP67	90 %	4.2 kV	90 °C	-40 °C	OCP OTP OVP SCP	Chassis Mount	305 VAC	Wire Leads			CB CCC CE cURus EAC ENEC RCM	Constant Current	1			125 mm	32 mm	4.92 in	1.26 in	2.48 in	63 mm	AC DC Converter	100 VAC	24 V
MEAN WELL USA Inc. XLG-75-12-A	IP67	89 %	4.2 kV	90 °C	-40 °C	OCP OTP OVP SCP	Chassis Mount	305 VAC	Wire Leads			CB CCC CE cURus EAC ENEC RCM	Constant Current	1	60 W	5 A	125 mm	32 mm	4.92 in	1.26 in	2.48 in	63 mm	AC DC Converter	100 VAC	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.4A 27 ~ 56V Constant Current LED Driver AC DC Converter Topology 1 Output
