09160403101

Active

HARTING Technology Group

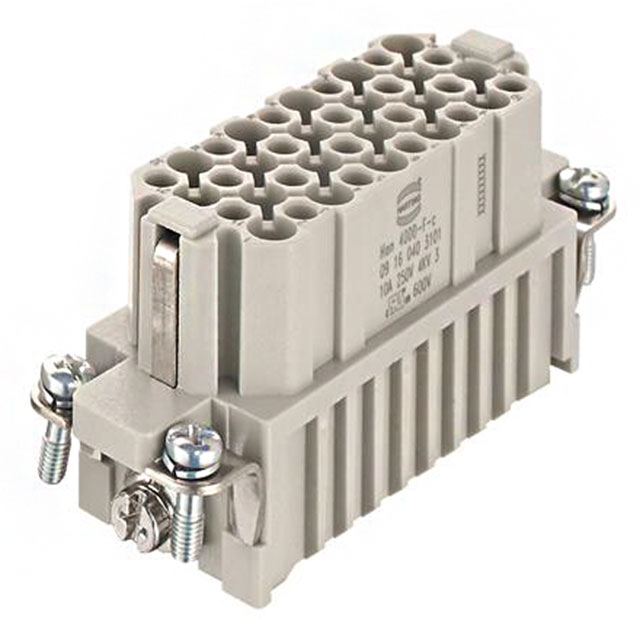

HEAVY DUTY CONNECTOR, HAN DD SERIES, INSERT, 40+PE CONTACTS, 16A, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN DD SERIES, INSERT, 40+PE CONTACTS, 16A, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09160403101

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	40+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 A
Termination Style	Crimp
Voltage Rating	250 VDC

Part	Color	Termination Style	Number of Positions	Material Flammability Rating	Size	Current Rating (Amps)	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Material	Gender	Voltage Rating
HARTING Technology Group 09160403101	Gray	Crimp	40+Ground	UL94 V-0	16 A	10 A	Han® D	125 °C	-40 °C	Insert without Contacts	Polycarbonate (PC)	Male	250 VDC
HARTING Technology Group 09160403001	Gray	Crimp	40+Ground	UL94 V-0	16 A	10 A	Han® D	125 °C	-40 °C	Insert without Contacts	Polycarbonate (PC)	Female	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 40+Ground Position Crimp
