1771 OR005

Active

ALPHA WIRE

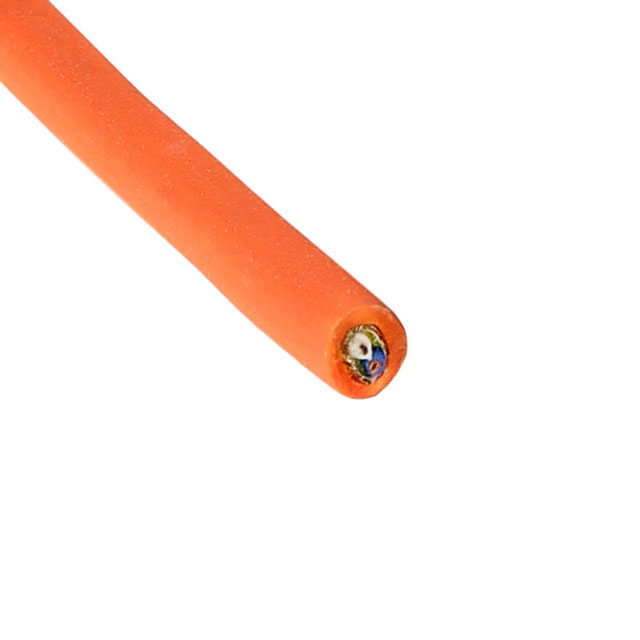

MULTICONDUCTOR, BRAID SHIELDED CABLE, 1771 ORANGE 100 FT

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR, BRAID SHIELDED CABLE, 1771 ORANGE 100 FT

Technical Specifications

Parameters and characteristics for this part

Specification	1771 OR005

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	40
Conductor Strand [custom]	60
Jacket (Insulation) Diameter [diameter]	0.243 "
Jacket (Insulation) Diameter [diameter]	6.17 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Orange
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	600 V
Wire Gauge	23 AWG

Part	Cable Type	Jacket (Insulation) Material	Conductor Insulation	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Coverage	Conductor Material	Shield Type	Wire Gauge	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length	Length	Length [x]	Length [x]
ALPHA WIRE 1771 OR001	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	600 V	-20 C	60 °C	40	60	Copper Tinned	0.04 in	1.016 mm	2	95 %	Copper Bare	Braid	23 AWG	Communication Control	0.243 "	6.17 mm	Orange	1000 ft	304.8 m
ALPHA WIRE 1771 BK005	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	600 V	-20 C	60 °C	40	60	Copper Tinned	0.04 in	1.016 mm	2	95 %	Copper Bare	Braid	23 AWG	Communication Control	0.243 "	6.17 mm	Black			30.5 m	100 ft
ALPHA WIRE 1771 OR005	Multi-Conductor	Poly-Vinyl Chloride (PVC)	Polyethylene (PE)	600 V	-20 C	60 °C	40	60	Copper Tinned	0.04 in	1.016 mm	2	95 %	Copper Bare	Braid	23 AWG	Communication Control	0.243 "	6.17 mm	Orange			30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Orange 23 AWG Braid 100.0' (30.5m)
