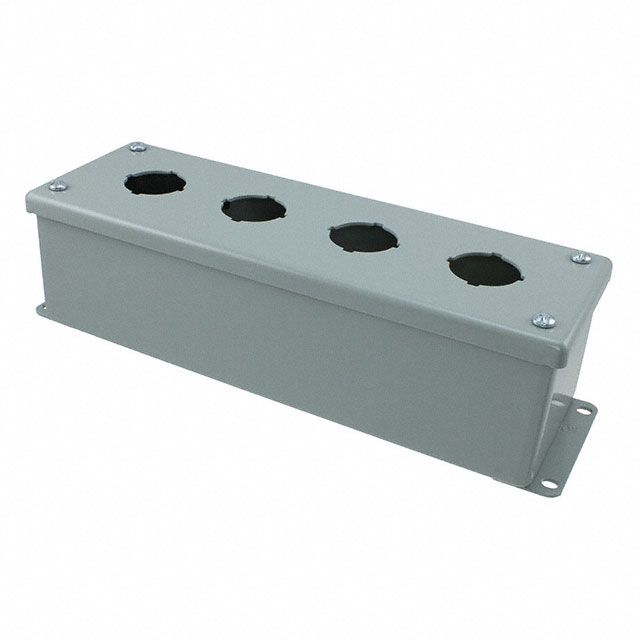

E4PBX

Active

Hoffman Enclosures, Inc.

BOX STEEL GRAY 10"L X 4.02"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX STEEL GRAY 10"L X 4.02"W

Technical Specifications

Parameters and characteristics for this part

Specification	E4PBX

Area (L x W)	41.2 in²
Area (L x W)	266 cm²
Color	Gray
Container Type	Box
Design	Cover Included
Features	Pushbutton Holes - 4, Mounting Flange
Height [z]	121 mm
Height [z]	4.764 in
Material	Metal, Steel
Ratings	IP65, NEMA 13, UL-508A, NEMA 12
Size / Dimension [x]	10 in
Size / Dimension [x]	254 mm
Size / Dimension [y]	4.016 in
Size / Dimension [y]	102 mm
Thickness	14 Gauge
Weight	2.3 kg
Weight	5 lbs

Part	Design	Features	Weight	Weight	Thickness	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Height [z]	Height [z]	Container Type	Ratings	Color	Area (L x W)	Area (L x W)
Hoffman Enclosures, Inc. E4PBX	Cover Included	Mounting Flange Pushbutton Holes - 4	2.3 kg	5 lbs	14 Gauge	10 in	254 mm	4.016 in	102 mm	Metal Steel	121 mm	4.764 in	Box	IP65 NEMA 12 NEMA 13 UL-508A	Gray	41.2 in²	266 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Steel Gray Cover Included 10.000" L x 4.016" W (254.00mm x 102.00mm) X 4.764" (121.00mm)

Technical documentation and resources
