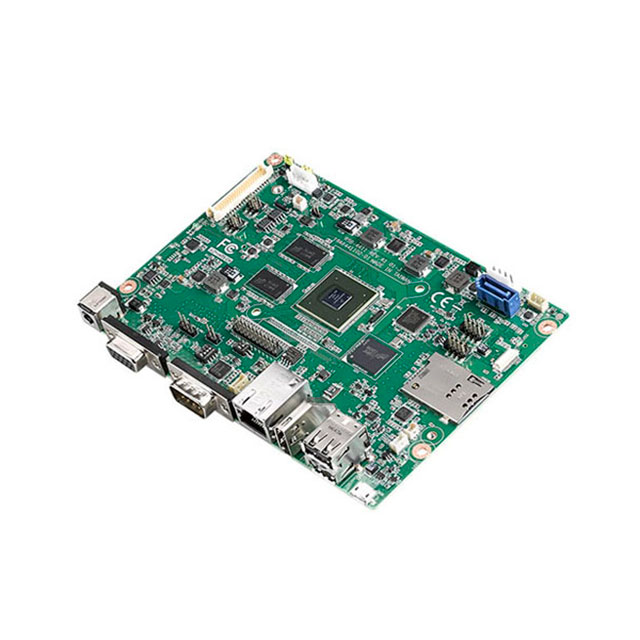

RSB-4411CQ-PNA1E
ActiveAdvantech Corp
SBC 1.0GHZ 4 CORE 1GB/4GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSB-4411CQ-PNA1E
ActiveAdvantech Corp
SBC 1.0GHZ 4 CORE 1GB/4GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSB-4411CQ-PNA1E |
|---|---|
| Core Processor | ARM Cortex-A9, i.MX6Dual |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | SIM, mPCIe, SD |
| Form Factor | 3.5 in |
| Number of Cores | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 1GB, 4GB |
| RS-232 (422, 485) | 3 |
| Size / Dimension [x] | 146.05 mm |
| Size / Dimension [x] | 5.75 in |
| Size / Dimension [y] | 4.02 in |
| Size / Dimension [y] | 102.1 mm |
| Speed | 1 GHz |
| USB | USB (3), USB OTG (1), USB Type-A (1) |
| Video Outputs | HDMI, VGA, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 264.60 | |
Description
General part information
RSB-4411 Series
Single Board Computer 1GHz 4 Core 1GB/4GB RAM ARM Cortex-A9, i.MX6Dual
