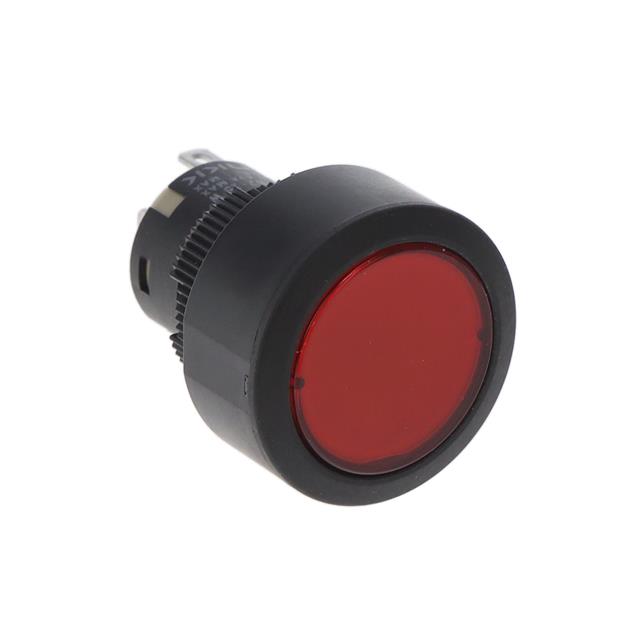

YB215CWCKG01-N-CB

Active

NKK Switches

STD SIZE PUSHBUTTON/ILLUMINATED/

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB215CWCKG01-N-CB

Active

NKK Switches

STD SIZE PUSHBUTTON/ILLUMINATED/

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB215CWCKG01-N-CB

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Tactile Feedback
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB215C Series

...

Part	Illumination Type, Color	Electrical Life	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Mounting Type	Color - Actuator/Cap	Actuator Marking	Circuit	Ingress Protection	Termination Style	Termination Style	Termination Style	Mechanical Life	Illumination Voltage (Nominal)	Actuator Type	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current Rating (Amps)	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches YB215CWCKW01-5D12-EB	Amber LED	100000 Cycles	22 mm	30 V	Panel Mount Front	Yellow (White Filter/Diffuser)	No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	12 VDC	Button Flush Round	Tactile Feedback	On-Mom	50 °C	-25 °C	Illuminated Standard	3 A	125 V
NKK Switches YB215CWCKW01-N-EB		100000 Cycles	22 mm	30 V	Panel Mount Front	Yellow (White Filter/Diffuser)	No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles		Button Flush Round	Tactile Feedback	On-Mom	70 °C	-25 °C	Standard	3 A	125 V
NKK Switches YB215CWCKW01-5C-JB	LED Red	100000 Cycles	22 mm	30 V	Panel Mount Front	Clear	No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	1.9 VDC	Button Flush Round	Tactile Feedback	On-Mom	50 °C	-25 °C	Illuminated Standard	3 A	125 V
NKK Switches YB215CWCKG01-N-CB		100000 Cycles	22 mm	28 V	Panel Mount Front	Red	No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles		Button Flush Round	Tactile Feedback	On-Mom	70 °C	-25 °C	Standard	0.4 VA	28 V
NKK Switches YB215CWCKW01-5C-HB-001	LED Red	100000 Cycles	22 mm	30 V	Panel Mount Front	Unbrushed Chrome White	No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	1.9 VDC	Button Flush Round	Tactile Feedback	On-Mom	50 °C	-25 °C	Illuminated Standard	3 A	125 V
NKK Switches YB215CWCKG01-5F24-JB	Green LED	100000 Cycles	22 mm	28 V	Panel Mount Front	Clear	No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	24 V	Button Flush Round	Tactile Feedback	On-Mom	50 °C	-25 °C	Illuminated Standard	0.4 VA	28 V
NKK Switches YB215CWSSG01		100000 Cycles		28 V	Panel Mount Front		No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles		Plunger for Cap	Tactile Feedback	On-Mom	70 °C	-25 °C	Standard	0.4 VA	28 V	21 mm	21 mm
NKK Switches YB215CWSKG01-5F05-FB	Green LED	100000 Cycles		28 V	Panel Mount Front	Green	No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	5 VDC		Tactile Feedback	On-Mom	50 °C	-25 °C	Illuminated Standard	0.4 VA	28 V	21 mm	21 mm
NKK Switches YB215CWCKW01-5F12-FB	Green LED	100000 Cycles	22 mm	30 V	Panel Mount Front	Green	No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles	12 VDC	Button Flush Round	Tactile Feedback	On-Mom	50 °C	-25 °C	Illuminated Standard	3 A	125 V
NKK Switches YB215CWSKW01-N-HB		100000 Cycles		30 V	Panel Mount Front	Unbrushed Chrome White	No Marking	SPDT	IP65 - Dust Tight Water Resistant	0.11 in	Quick Connect Solder	2.8 mm	1000000 Cycles			Tactile Feedback	On-Mom	70 °C	-25 °C	Standard	3 A	125 V	21 mm	21 mm
