SC4530WLTRT
ObsoleteSemtech Corporation
IC REG BUCK ADJ 300MA 8MLPD
Deep-Dive with AI
Search across all available documentation for this part.
SC4530WLTRT
ObsoleteSemtech Corporation
IC REG BUCK ADJ 300MA 8MLPD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC4530WLTRT |
|---|---|
| Current - Output | 300 mA |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

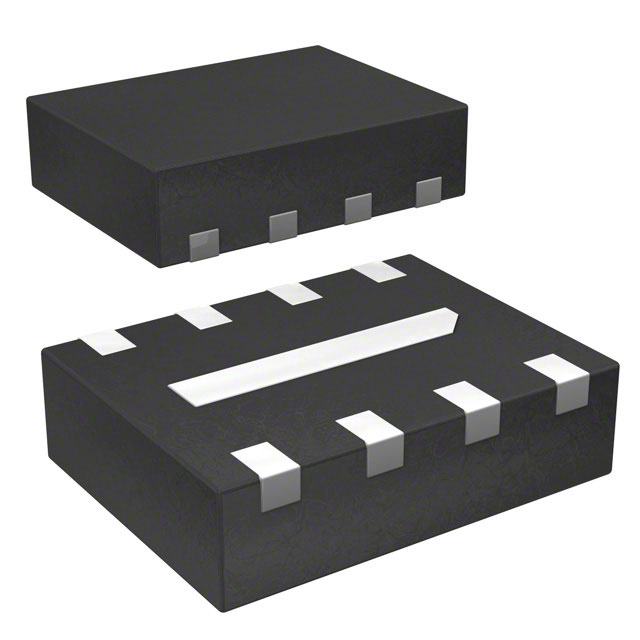

| Package / Case | 8-WFDFN Exposed Pad |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) [Max] | 28.8 V |
| Voltage - Output (Min/Fixed) [Min] | 1.232 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.43 | |
| 10 | $ 1.28 | |||
| 25 | $ 1.22 | |||
| 100 | $ 1.00 | |||
| 250 | $ 0.93 | |||
| 500 | $ 0.83 | |||
| 1000 | $ 0.65 | |||
| Tape & Reel (TR) | 3000 | $ 0.61 | ||
| 6000 | $ 0.58 | |||
| 15000 | $ 0.56 | |||
Description
General part information
SC4530 Series
Buck Switching Regulator IC Positive Adjustable 1.232V 1 Output 300mA 8-WFDFN Exposed Pad
Documents
Technical documentation and resources
No documents available
