857-008-401-102
ActiveEDAC Inc.

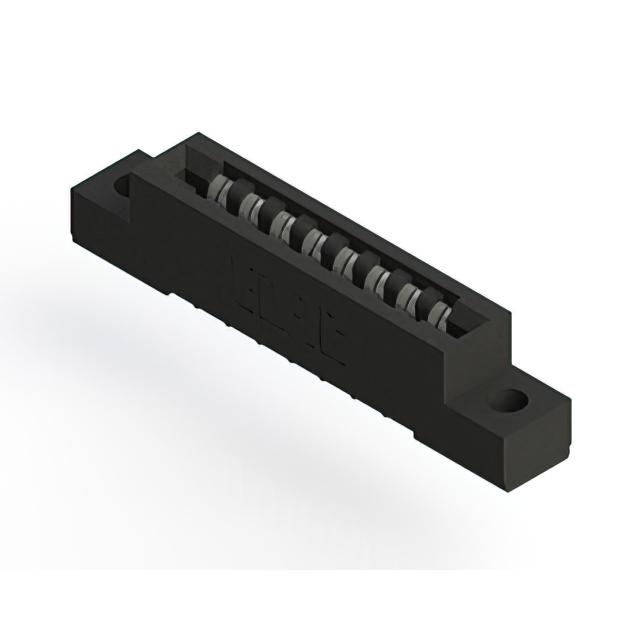

CONN EDGE DUAL FMALE 16POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-008-401-102
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-008-401-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
857-008 Series
...
| Part | Number of Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Read Out | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Material - Insulation | Card Type | Contact Type | Pitch [x] | Pitch [x] | Gender | Number of Positions | Contact Material | Mounting Type | Termination | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 8 | 8 | 8 | Single | Tin | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | 8 | Copper Alloy | Through Hole | Solder | 1 | ||||||||
EDAC Inc. | 1 | 8 | 8 | 8 | Single | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | 8 | Copper Alloy | Through Hole Right Angle | Solder | 1 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |||
EDAC Inc. | 1 | 8 | 8 | 8 | Single | Tin | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | 8 | Copper Alloy | Through Hole | Solder | 1 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | |||||
EDAC Inc. | 2 | 8 | 8 | 8 | Dual | Tin | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | Copper Alloy | Through Hole Right Angle | Solder | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 16 | |||||
EDAC Inc. | 1 | 8 | 8 | 8 | Single | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | 8 | Copper Alloy | Through Hole | Solder | 1 | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | 2 | 8 | 8 | 8 | Dual | Tin | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | Copper Alloy | Through Hole | Solder | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 16 | |||||||
EDAC Inc. | 1 | 8 | 8 | 8 | Single | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | 8 | Copper Alloy | Through Hole | Wire Wrap | 1 | 10 Áin | 0.25 Ám | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |||
EDAC Inc. | 2 | 8 | 8 | 8 | Dual | Tin | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | Copper Alloy | Through Hole | Solder | 1 | Side Mount Opening Unthreaded | 16 | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 2 | 8 | 8 | 8 | Dual | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | Copper Alloy | Through Hole | Wire Wrap | 1 | 10 Áin | 0.25 Ám | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 16 | |||
EDAC Inc. | 2 | 8 | 8 | 8 | Dual | Tin | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Semi Bellows | 0.156 in | 3.96 mm | Female | Copper Alloy | Through Hole | Solder Eyelet(s) | 1 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 86.93 | |
Description
General part information
857-008 Series
16 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
