072I,AL

Active

Serpac

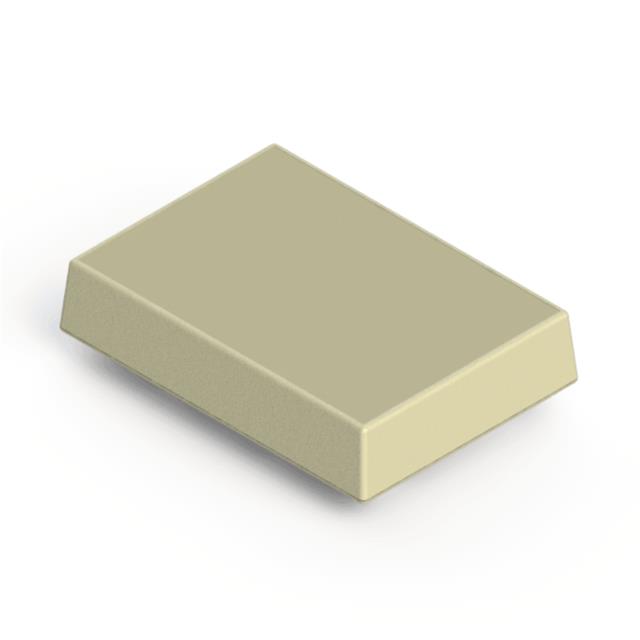

BOX ABS ALMOND 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	072I,AL

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Almond
Container Type	Box
Design	Cover Included, Hand Held
Features	PCB Supports
Height [z]	35.56 mm
Height [z]	1.4 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in

Part	Color	Container Type	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Ratings	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material Flammability Rating	Design	Thickness	Thickness	Material
Serpac 072I,AL	Almond	Box	33.6 in²	217 cm²	35.56 mm	1.4 in	IP40 NEMA 1	PCB Supports	123.95 mm	174.75 mm	4.88 in	6.88 in	UL94 HB	Cover Included Hand Held	2.54 mm	0.1 in	Plastic ABS
Serpac 072I,GY	Gray	Box	33.6 in²	217 cm²	35.56 mm	1.4 in	IP40 NEMA 1	PCB Supports	123.95 mm	174.75 mm	4.88 in	6.88 in	UL94 HB		2.54 mm	0.1 in	Plastic ABS
Serpac 072I,BK	Black	Box	33.6 in²	217 cm²	35.56 mm	1.4 in	IP40 NEMA 1	PCB Supports	123.95 mm	174.75 mm	4.88 in	6.88 in	UL94 HB		2.54 mm	0.1 in	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.42

General part information

Box Plastic, ABS Almond Hand Held, Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.400" (35.56mm)

Technical documentation and resources

No documents available
