1214A 0101000

Active

Belden Inc.

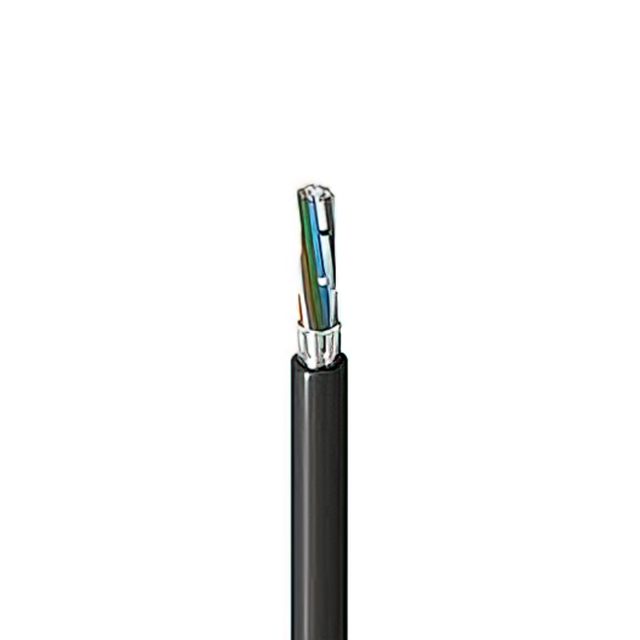

CABLE 16 COND 26AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 16 COND 26AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	1214A 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.301 in
Jacket (Insulation) Diameter [diameter]	7.65 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	16
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	26 AWG

Part	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Cable Type	Length	Length	Voltage	Number of Conductors	Conductor Strand	Conductor Insulation	Conductor Material	Wire Gauge	Ratings	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Jacket Color	Shield Material
Belden Inc. 1214A 0101000	Instrumentation	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	1000 ft	304.8 m	300 V	16	7 Strands 34 AWG	Poly-Vinyl Chloride (PVC)	Copper Tinned	26 AWG	UL Style 2464	Drain Wire	0.301 in	7.65 mm	100 %	0.889 mm	0.035 in	Foil	Black	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 11.42

General part information

16 Conductor Multi-Conductor Cable Black 26 AWG Foil 1000.0' (304.8m)
