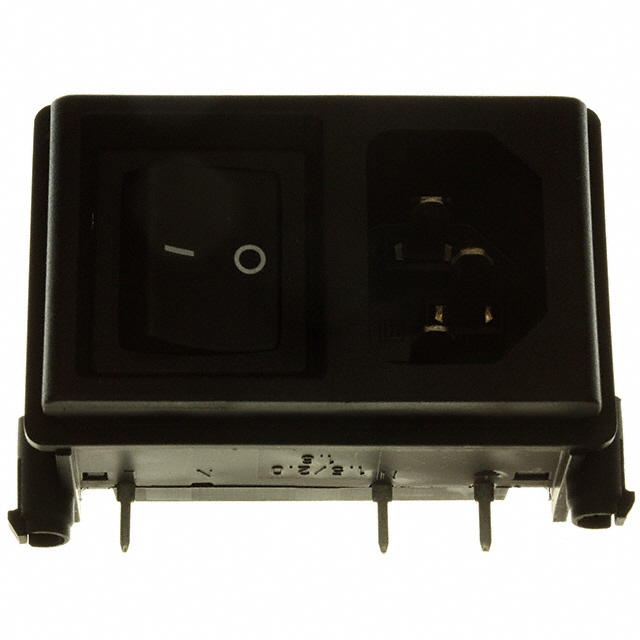

KP01.1212.11

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	KP01.1212.11

Accomodates a Fuse	False
Approval Agency	VDE, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover, Board Lock
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Cutout Dimensions	Variable Size
Panel Thickness	2 mm
Panel Thickness	0.079 in
Switch Features	Switch On-Off
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Thickness	Panel Thickness	Mounting Type	Ingress Protection	Switch Features	Material Flammability Rating	Panel Cutout Dimensions	Termination	Voltage Rating - Appliance Inlet	Filter Type	Connector Style	Approval Agency	Connector Type	Accomodates a Fuse	Current Rating - Appliance Inlet	Features
SCHURTER Inc. KP01.1212.11	2 mm	0.079 in	Panel Mount Snap-In Through Hole Right Angle	IP40	Switch On-Off	UL94 V-0	Variable Size	Solder	250 VAC	Unfiltered - Commercial	IEC 320-C14	CCC cURus VDE	Receptacle Male Blades - Module		10 A	Board Lock Terminating Cover

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
