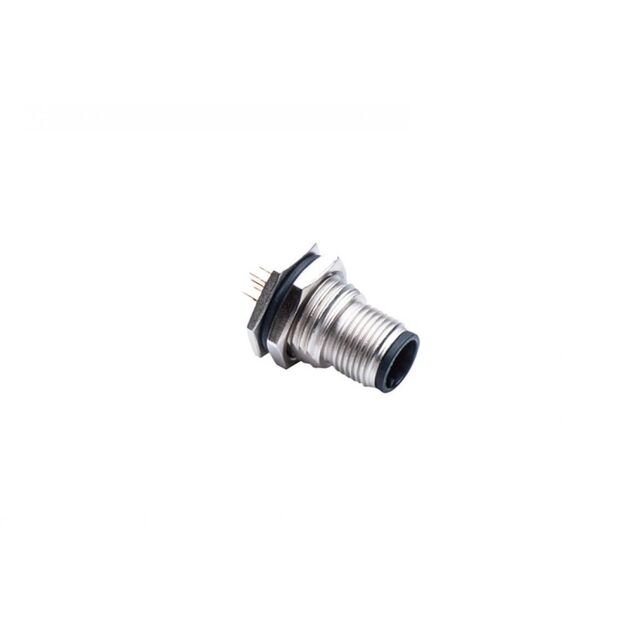

MSAS-10PMMP-SF8001
ActiveAmphenol LTW
M12 PANEL PCB SHIELD CONN
Deep-Dive with AI
Search across all available documentation for this part.
MSAS-10PMMP-SF8001
ActiveAmphenol LTW
M12 PANEL PCB SHIELD CONN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSAS-10PMMP-SF8001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Features | Ground |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polyamide (PA), Nylon, Glass Filled |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-10 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 30 VDC |
MSAS-10PMMP Series
| Part | Color | Number of Positions | Current Rating (Amps) | Shell Finish | Contact Finish - Mating | Ingress Protection | Features | Termination | Shielding | Orientation | Contact Material | Voltage Rating | Shell Size - Insert | Insert Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Mounting Type | Primary Material | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol LTW | Silver | 10 | 1.5 A | Nickel | Gold | IP68 IP69K | Ground | Solder | Shielded | A | Copper Alloy | 30 VDC | M12-10 | Polyamide (PA) Nylon Glass Filled | Male Pins Receptacle | -40 °C | 105 ░C | Bulkhead - Front Side Nut | Panel Mount Through Hole | Metal | Zinc Alloy |
Amphenol LTW | Silver | 10 | 1.5 A | Nickel | Gold | IP68 IP69K | Ground | Solder | Shielded | A | Copper Alloy | 30 VDC | M12-10 | Polyamide (PA) Nylon Glass Filled | Male Pins Receptacle | -40 °C | 105 ░C | Bulkhead - Front Side Nut | Panel Mount Through Hole | Metal | Zinc Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.61 | |
| 10 | $ 11.23 | |||
| 25 | $ 10.15 | |||
| 50 | $ 9.42 | |||
| 100 | $ 8.76 | |||
| 250 | $ 7.98 | |||
| 500 | $ 7.46 | |||
| 1000 | $ 6.98 | |||
Description
General part information
MSAS-10PMMP Series
10 Position Circular Connector Receptacle, Male Pins Solder
Documents
Technical documentation and resources
No documents available
