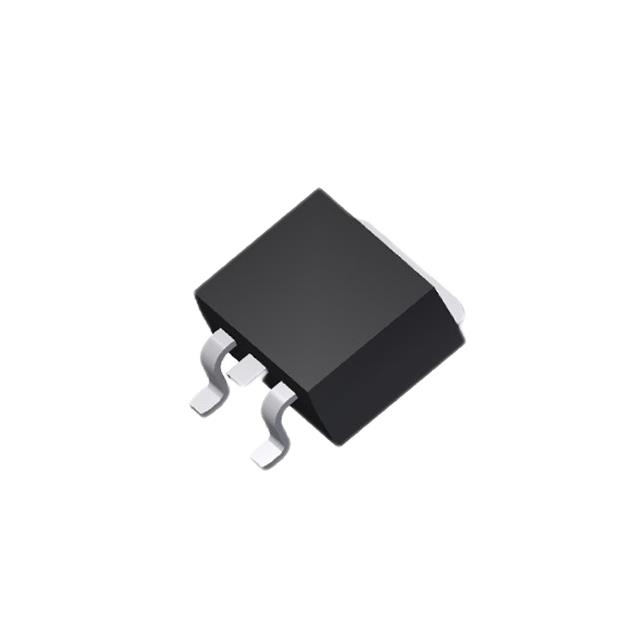

AM90N08-04B

Active

Analog Power Inc.

MOSFET N-CH 80V 90A TO-263

Search across all available documentation for this part.

Active

Analog Power Inc.

MOSFET N-CH 80V 90A TO-263

Technical Specifications

Parameters and characteristics for this part

Specification	AM90N08-04B

Current - Continuous Drain (Id) @ 25°C	90 A
Drain to Source Voltage (Vdss)	60 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 6.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	167 nC
Input Capacitance (Ciss) (Max) @ Vds	11678 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Power Dissipation (Max) [Max]	300 W
Rds On (Max) @ Id, Vgs	4.5 mOhm
Supplier Device Package	TO-263
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 60 V 90A (Tc) 300W (Tc) Surface Mount TO-263
