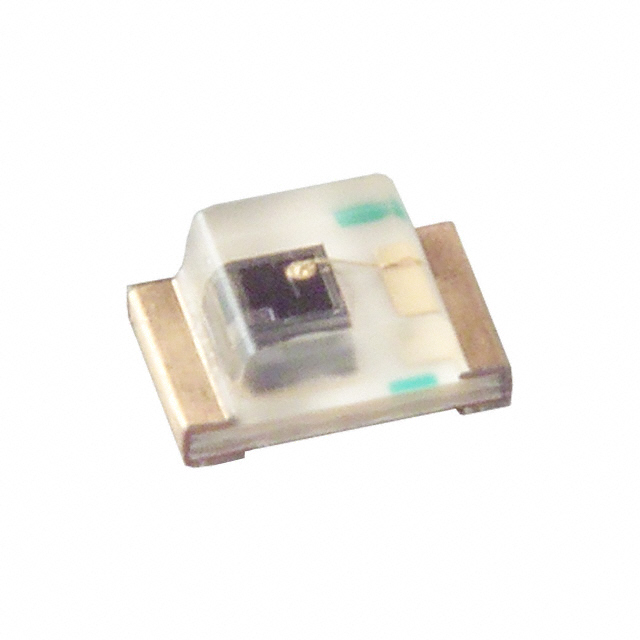

RPM-075PTT86
ActiveRohm Semiconductor
SENSOR PHOTO 600NM TOP VIEW SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPM-075PTT86
ActiveRohm Semiconductor
SENSOR PHOTO 600NM TOP VIEW SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPM-075PTT86 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 10 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Orientation | Top View |
| Package / Case | Nonstandard SMD |
| Power - Max [Max] | 50 mW |
| Viewing Angle | 120 ° |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Wavelength | 600 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.64 | |||
| 100 | $ 0.44 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 1.05 | ||
| 10 | $ 0.64 | |||
| 100 | $ 0.44 | |||
| 500 | $ 0.36 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 3000 | $ 0.30 | ||
| 6000 | $ 0.28 | |||
| 9000 | $ 0.28 | |||
| 15000 | $ 0.27 | |||
| 21000 | $ 0.26 | |||
| 30000 | $ 0.26 | |||
Description
General part information
RPM-075 Series
Phototransistors 600nm Top View Nonstandard SMD
