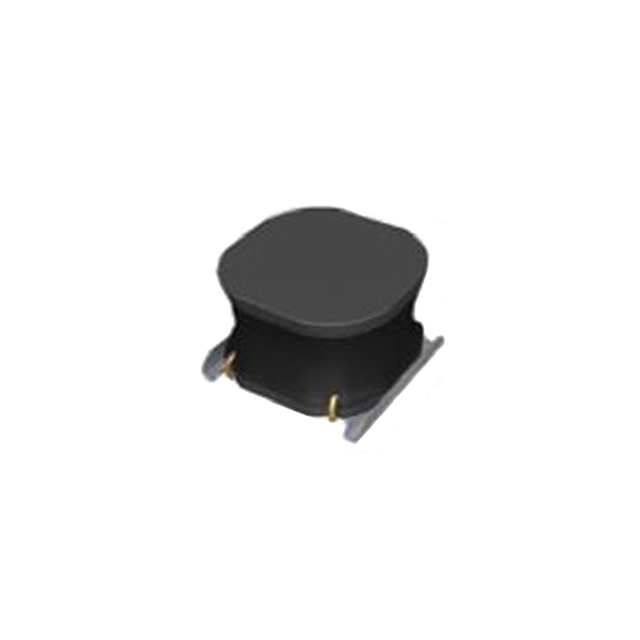

1264EY-3R3N=P3

Active

Murata Power Solutions Inc.

FIXED IND 3.3UH 4.8A 21MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1264EY-3R3N=P3

Active

Murata Power Solutions Inc.

FIXED IND 3.3UH 4.8A 21MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1264EY-3R3N=P3

Current - Saturation (Isat)	6.5 A
Current Rating (Amps)	4.8 A
DC Resistance (DCR)	21 mOhm
Height - Seated (Max) [Max] [z]	0.197 in
Height - Seated (Max) [Max] [z]	5 mm
Inductance	3.3 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	6.3 mm
Size / Dimension [x]	0.248 in
Size / Dimension [y]	0.248 in
Size / Dimension [y]	6.3 mm
Tolerance	30 %
Type	Wirewound, Drum Core

1264EY Series

Part	DC Resistance (DCR)	Type	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Saturation (Isat)	Shielding	Inductance	Current Rating (Amps)	Mounting Type	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Material - Core
Murata Power Solutions Inc. 1264EY-330M=P3	170 mOhm	Drum Core Wirewound	100 kHz	6.3 mm	0.248 in	0.248 in	6.3 mm	1.9 A	Shielded	33 µH	1.4 A	Surface Mount	20 %	0.197 in	5 mm	Nonstandard	Ferrite
Murata Power Solutions Inc. 1264EY-3R3N=P3	21 mOhm	Drum Core Wirewound	100 kHz	6.3 mm	0.248 in	0.248 in	6.3 mm	6.5 A	Shielded	3.3 µH	4.8 A	Surface Mount	30 %	0.197 in	5 mm	Nonstandard	Ferrite
Murata Power Solutions Inc. 1264EY-101M=P3	460 mOhm	Drum Core Wirewound	100 kHz	6.3 mm	0.248 in	0.248 in	6.3 mm	1.2 A	Shielded	100 µH	900 mA	Surface Mount	20 %	0.197 in	5 mm	Nonstandard	Ferrite
Murata Power Solutions Inc. 1264EY-680M=P3	325 mOhm	Drum Core Wirewound	100 kHz	6.3 mm	0.248 in	0.248 in	6.3 mm	1.4 A	Shielded	68 µH	1.1 A	Surface Mount	20 %	0.197 in	5 mm	Nonstandard	Ferrite
Murata Power Solutions Inc. 1264EY-4R7M=P3	29 mOhm	Drum Core Wirewound	100 kHz	6.3 mm	0.248 in	0.248 in	6.3 mm	5.4 A	Shielded	4.7 ÁH	3.7 A	Surface Mount	20 %	0.197 in	5 mm	Nonstandard	Ferrite
Murata Power Solutions Inc. 1264EY-100M=P3	45 mOhm	Drum Core Wirewound	100 kHz	6.3 mm	0.248 in	0.248 in	6.3 mm	3.5 A	Shielded	10 µH	3.1 A	Surface Mount	20 %	0.197 in	5 mm	Nonstandard	Ferrite
Murata Power Solutions Inc. 1264EY-1R5N=P3	14 mOhm	Drum Core Wirewound	100 kHz	6.3 mm	0.248 in	0.248 in	6.3 mm		Shielded	1.5 µH	5.5 Amps	Surface Mount	30 %	0.197 in	5 mm	Nonstandard	Ferrite
Murata Power Solutions Inc. 1264EY-150M=P3	87 mOhm	Drum Core Wirewound	100 kHz	6.3 mm	0.248 in	0.248 in	6.3 mm	3 A	Shielded	15 µH	2.1 A	Surface Mount	20 %	0.197 in	5 mm	Nonstandard	Ferrite

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1264EY Series

3.3 µH Shielded Drum Core, Wirewound Inductor 4.8 A 21mOhm Nonstandard
