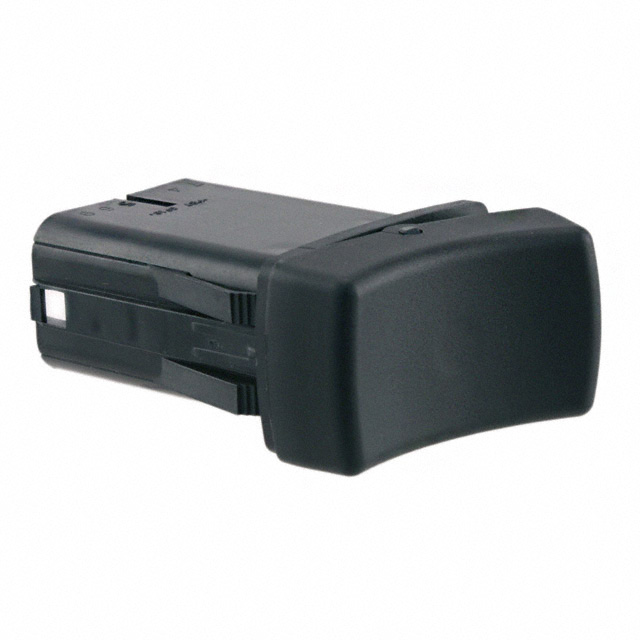

W24D20001-AZZ00-000
ActiveCarling Technologies
ROCKER SWITCHES ON NONE ON FULLY SEALED ROCKER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W24D20001-AZZ00-000
ActiveCarling Technologies
ROCKER SWITCHES ON NONE ON FULLY SEALED ROCKER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W24D20001-AZZ00-000 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [x] | 36.83 mm |
| Panel Cutout Dimensions [y] | 21.08 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
W24D20001 Series
