895-134-500-202
ActiveEDAC Inc.

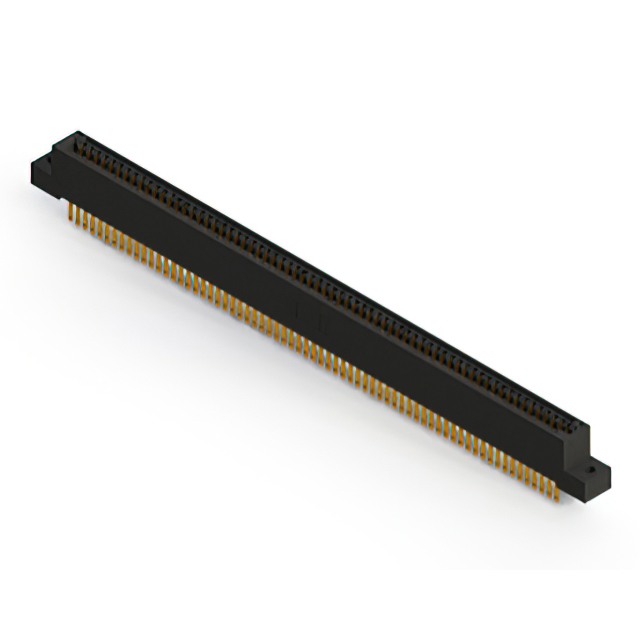

CONN EDGE DUAL FML 134POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-134-500-202
ActiveEDAC Inc.
CONN EDGE DUAL FML 134POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-134-500-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 134 |
| Number of Positions/Bay/Row [custom] | 67 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
895-134 Series
...
| Part | Contact Material | Number of Positions/Bay/Row [custom] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Gender | Termination | Mounting Type | Color | Read Out | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Contact Finish | Material - Insulation | Number of Positions | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder Eyelet(s) | Through Hole | Black | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | |||||
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder | Through Hole | Black | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | |||||
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder Eyelet(s) | Through Hole | Black | Dual | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | |||||
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder | Through Hole | Black | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder Eyelet(s) | Through Hole | Black | Dual | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | 0.116 in | 2.95 mm | |||
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder Eyelet(s) | Through Hole | Black | Dual | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | 0.128 " | 3.25 mm | |||
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder | Through Hole | Black | Dual | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | |||||
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder | Through Hole | Black | Dual | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | |||||
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder | Board Edge Straddle Mount | Black | Dual | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | Card Extender | ||||
EDAC Inc. | Copper Alloy | 67 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 2 | 125 °C | -40 °C | 2 | Female | Solder | Through Hole | Black | Dual | Flush Mount Side Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Polyphenylene Sulfide (PPS) | 134 | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-134 Series
134 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
