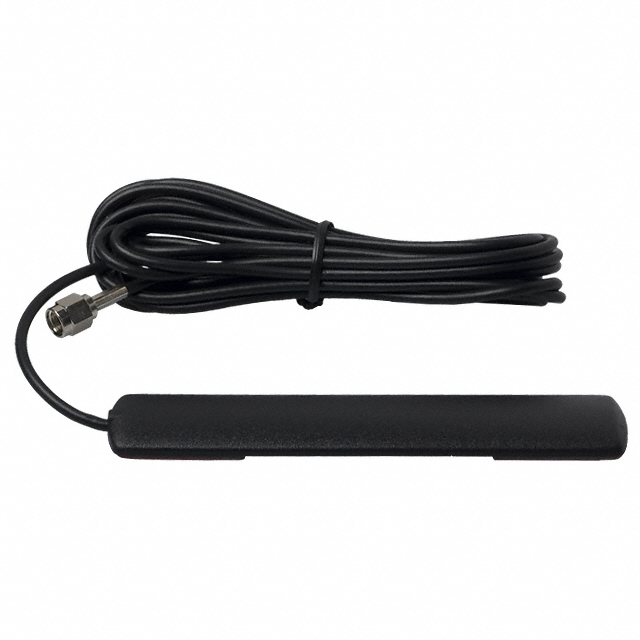

ANT-DB1-VDP-TNC

Active

TE Connectivity Linx

RF ANT 892MHZ/1.85GHZ FLAT BAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-DB1-VDP-TNC

Active

TE Connectivity Linx

RF ANT 892MHZ/1.85GHZ FLAT BAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-DB1-VDP-TNC

Antenna Type	Flat Bar
Features	Cable
Features	3 m
Frequency (Center/Band)	892 MHz, 1.85 GHz, 2.45 GHz
Frequency Group	Wide Band
Frequency Range [Max]	1.99 GHz, 960 MHz, 2.48 GHz
Frequency Range [Min]	1.71 GHz, 2.4 GHz, 824 MHz
Gain	-1.8 dBi, -1.3 dBi, -1.7 dBi
Height (Max) [Max]	4.5 mm
Height (Max) [Max]	0.177 in
Mounting Type	Adhesive
Number of Bands	3
Termination	TNC
VSWR	1.5, 1.9

ANT-DB1 Series

Part	RF Family/Standard	Gain	Antenna Type	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Number of Bands	Applications	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	VSWR	Termination	Frequency Group	Features	Features	Power - Max [Max]	Return Loss	VSWR [Max]	VSWR [Min]	Height (Max)
TE Connectivity Linx ANT-DB1-RAF-SMA	802.15.4 Bluetooth WiFi	2.5 dBi 4.6 dBi	Tilt Whip	4 GHz	2 GHz	3 GHz	2	Bluetooth Thread Wi-Fi Zigbee™	Connector Mount	2.483 GHz 5.825 GHz	2.4 GHz 5.15 GHz	2.4 GHz 2.5 GHz 5 GHz 5.7 GHz 5.8 GHz	4.13 in	104.9 mm	1.9
TE Connectivity Linx ANT-DB1-VDP-TNC		-1.8 dBi -1.7 dBi -1.3 dBi	Flat Bar				3		Adhesive	1.99 GHz 2.48 GHz 960 MHz	1.71 GHz 2.4 GHz 824 MHz	1.85 GHz 2.45 GHz 892 MHz	0.177 in	4.5 mm	1.5 1.9	TNC	Wide Band	Cable	3 m
TE Connectivity Linx ANT-DB1-HDP-SMA		-3.3 dBi 0 dBi 0.2 dBi	Flat Bar				3		Adhesive			1.85 GHz 2.45 GHz 892 MHz	0.476 in	12.1 mm	1.5 1.9		Wide Band	Cable	3 m
TE Connectivity Linx ANT-DB1-LCD-SMA	WiFi	2.8 dBi 2.92 dBi 4.5 dBi	Tilt Whip	4 GHz	2 GHz	3 GHz	3	ISM U-NII WiFi WLAN	Connector Mount	2.5 GHz 5.72 GHz 5.88 GHz	2.4 GHz 5.12 GHz 5.72 GHz	2.4 GHz 2.5 GHz 5 GHz 5.7 GHz 5.8 GHz	3.272 in	83.1 mm	1.9					10 W
TE Connectivity Linx ANT-DB1-HDP-RPS		-3.3 dBi 0 dBi 0.2 dBi	Flat Bar				3		Adhesive			1.85 GHz 2.45 GHz 892 MHz	0.476 in	12.1 mm	1.5 1.9	RP-SMA Male	Wide Band	Cable	3 m
TE Connectivity Linx ANT-DB1-WRT-SMA	WiFi	3.2 dBi 6.8 dBi 7 dBi	Dome	4 GHz	2 GHz	3 GHz	3	802.11 802.15.4 Bluetooth WiFi 4 WiFi 5 WiFi 6 ZigBee		2.485 GHz 5.85 GHz 7.125 GHz	2.4 GHz 5.15 GHz 5.925 GHz	2.4 GHz 5 GHz 6 GHz	0.394 in	10 mm	1.9 3.7 4			Cable	216 mm	5 W	-10.2 dB -4.8 dB -4.4 dB
TE Connectivity Linx ANT-DB1-RMS-RPS		-6 dBi 5.3 dBi	Whip Straight				2			1.99 GHz 960 MHz	1.71 GHz 824 MHz	1.9 GHz 892 MHz	2.583 "	65.6 mm		RP-SMA Male		Cable	4.3 m			2	1.5
TE Connectivity Linx ANT-DB1-NSP250-T	Bluetooth WiFi	2.7 dBi 3.7 dBi	Chip	4 GHz	2 GHz	3 GHz	2	802.11 Bluetooth U-NII Wi-Fi WLAN Zigbee™	Surface Mount	2.5 GHz 5.88 GHz	2.4 GHz 5.15 GHz	2.4 GHz 5.8 GHz	0.043 in	1.1 mm	2 2.4	Solder				5 W
TE Connectivity Linx ANT-DB1-VDP-RPS		-1.8 dBi -1.7 dBi -1.3 dBi	Flat Bar				3		Adhesive	1.99 GHz 2.48 GHz 960 MHz	1.71 GHz 2.4 GHz 824 MHz	1.85 GHz 2.45 GHz 892 MHz	0.177 in	4.5 mm	1.5 1.9	RP-SMA Male	Wide Band	Cable	3 m
TE Connectivity Linx ANT-DB1-WRT-MON-RPS	WiFi	1 dBi 2.8 dBi	Dome	4 GHz	2 GHz	3 GHz	2	802.11b/g/n/ac Bluetooth ISM U-NII Wi-Fi 4 Wi-Fi 5 Zigbee™		2.5 GHz 5.895 GHz	2.4 GHz 5.15 GHz	2.45 GHz 5.5225 GHz	1.063 in		2.2 10.8	RP-SMA Male		Cable	216 mm	5 W				27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.49

Description

General part information

ANT-DB1 Series

RF ANTENNA Flat Bar TNC Adhesive
