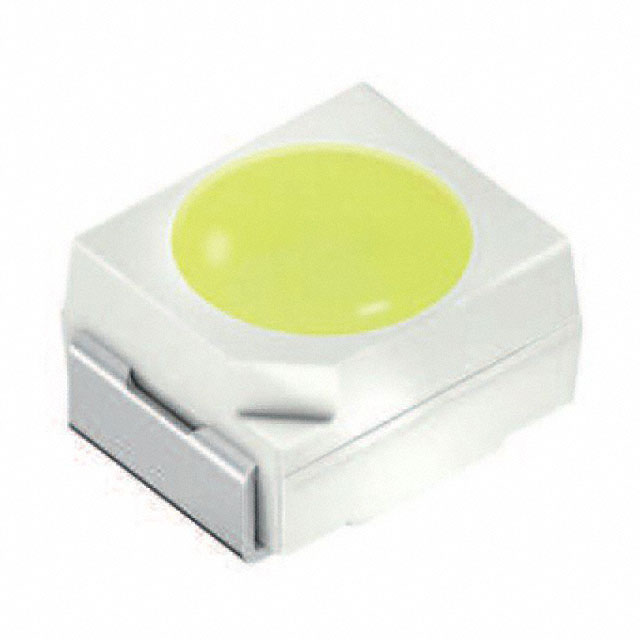

LW TVSG.CB-BXCX-JKPL-Z486-20-R18-Z
Activeams-OSRAM USA INC.
LED WHITE DIFFUSED 2PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LW TVSG.CB-BXCX-JKPL-Z486-20-R18-Z
Activeams-OSRAM USA INC.
LED WHITE DIFFUSED 2PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LW TVSG.CB-BXCX-JKPL-Z486-20-R18-Z |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.93 mm |
| Lens Color | Yellow |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 2550 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.05 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 2000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 10000 | $ 0.14 | |||
| 50000 | $ 0.13 | |||
Description
General part information
LWTVSG Series
White LED Indication - Discrete 3.05V 2-PLCC
