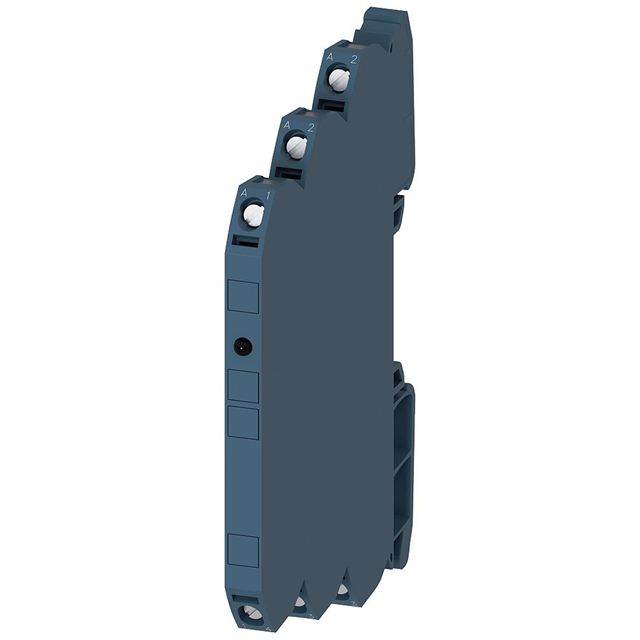

3RQ30521SM50

Active

Siemens

RELAY GEN PURPOSE SPST 2A 24V

Search across all available documentation for this part.

Active

Siemens

RELAY GEN PURPOSE SPST 2A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Relay Type	Contact Rating (Current)	Approval Agency	Termination Style	Operate Time	Coil Type	Switching Voltage	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Release Time	Features	Load - Max Switching	Load - Max Switching [Max]
Siemens 3RQ30521SM50	SPST-NO (1 Form A)	General Purpose	2 A	CCC CE CSA DNV EAC RCM UL	Screw Terminal	10 ms	Non Latching	264 VAC	24 VDC	-25 °C	60 °C	DIN Rail	9 ms	Lighted Indicator	528 VA
Siemens 3RQ30522SM40	SPST-NO (1 Form A)	General Purpose	2 A	CCC CE CSA DNV EAC RCM UL	Spring Terminal	0.3 ms	Non Latching	60 VDC	24 VDC	-25 °C	60 °C	DIN Rail	2 ms	Lighted Indicator	120 W
Siemens 3RQ30522SM30	SPST-NO (1 Form A)	General Purpose	2 A	CE CSA DNV EAC RCM UL	Spring Terminal		Non Latching	30 VDC	24 VDC	-25 °C	60 °C	DIN Rail	0.3 ms	Lighted Indicator		60 W
Siemens 3RQ30521SM30	SPST-NO (1 Form A)	General Purpose	2 A	CE CSA DNV EAC RCM UL	Screw Terminal		Non Latching	30 VDC	24 VDC	-25 °C	60 °C	DIN Rail	0.3 ms	Lighted Indicator		60 W
Siemens 3RQ30521SM40	SPST-NO (1 Form A)	General Purpose	2 A	CCC CE CSA DNV EAC RCM UL	Screw Terminal	0.3 ms	Non Latching	60 VDC	24 VDC	-25 °C	60 °C	DIN Rail	2 ms	Lighted Indicator	120 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 228.51

General part information

General Purpose Relay SPST-NO (1 Form A) DIN Rail
