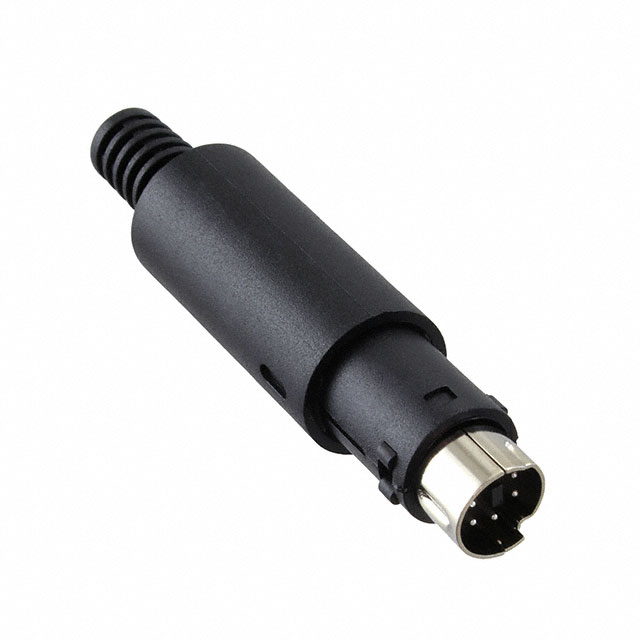

MDP-007

Active

Adam Tech

CONN PLUG MALE MINI DIN 7P SILV

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDP-007

Applications	Video, Audio
Backshell Material, Plating	Ethylene Vinyl Acetate (EVA)
Cable Opening [custom]	5 mm
Cable Opening [custom]	0.197 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Insert Material	Polyamide (PA6), Nylon 6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Tin
Shell Material	Polyacrylonitrile Butadiene Styrene (ABS)
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

MDP Series

Part	Shell Size - Insert	Applications	Contact Material	Color	Insert Material	Material Flammability Rating	Mounting Type	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Termination	Orientation	Voltage Rating	Contact Finish - Mating	Features	Fastening Type	Shell Finish	Backshell Material, Plating	Shell Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Number of Positions
Adam Tech MDP-005	Mini DIN	Audio Video	Brass	Black	Polyamide (PA6) Nylon 6	UL94 V-0	Free Hanging (In-Line)	Male Pins Plug	5 mm	0.197 in	Solder	Keyed	12 V 100 VAC	Silver	Backshell Strain Relief	Push-Pull	Tin	Ethylene Vinyl Acetate (EVA)	Polyacrylonitrile Butadiene Styrene (ABS)	Plastic	70 °C	-25 °C	Shielded
Adam Tech MDP-007	Mini DIN	Audio Video	Brass	Black	Polyamide (PA6) Nylon 6	UL94 V-0	Free Hanging (In-Line)	Male Pins Plug	5 mm	0.197 in	Solder	Keyed	12 V 100 VAC	Silver	Backshell Strain Relief	Push-Pull	Tin	Ethylene Vinyl Acetate (EVA)	Polyacrylonitrile Butadiene Styrene (ABS)	Plastic	70 °C	-25 °C	Shielded	7
Adam Tech MDP-008	Mini DIN	Audio Video	Brass	Black	Polyamide (PA6) Nylon 6	UL94 V-0	Free Hanging (In-Line)	Male Pins Plug	5 mm	0.197 in	Solder	Keyed	12 V 100 VAC	Silver	Backshell Strain Relief	Push-Pull	Tin	Ethylene Vinyl Acetate (EVA)	Polyacrylonitrile Butadiene Styrene (ABS)	Plastic	70 °C	-25 °C	Shielded	8
Adam Tech MDP-006	Mini DIN	Audio Video	Brass	Black	Polyamide (PA6) Nylon 6	UL94 V-0	Free Hanging (In-Line)	Male Pins Plug	5 mm	0.197 in	Solder	Keyed	12 V 100 VAC	Silver	Backshell Strain Relief	Push-Pull	Tin	Ethylene Vinyl Acetate (EVA)	Polyacrylonitrile Butadiene Styrene (ABS)	Plastic	70 °C	-25 °C	Shielded	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.27
		10	$ 1.74
		25	$ 1.56
		50	$ 1.44
		100	$ 1.34
		250	$ 1.21
		500	$ 1.12
		1000	$ 1.05
		2500	$ 0.96
