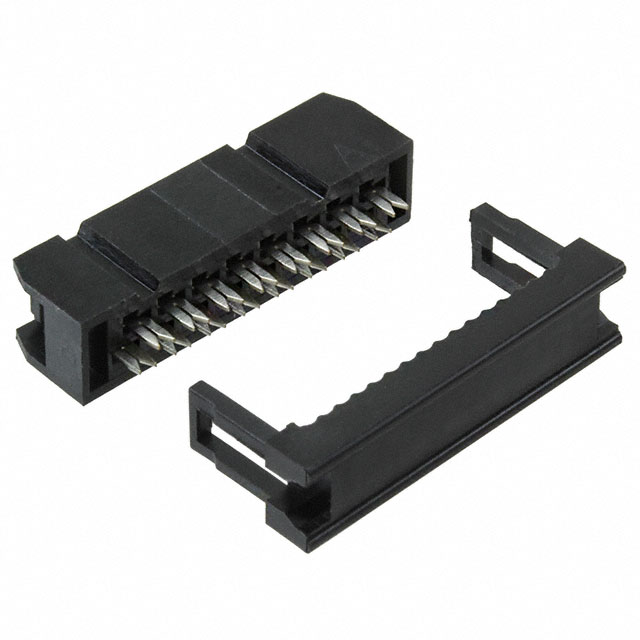

3030-16-0101-00
ActiveCnC Tech, LLC
CONN RCPT 16POS IDC GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3030-16-0101-00
ActiveCnC Tech, LLC
CONN RCPT 16POS IDC GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3030-16-0101-00 |
|---|---|
| Cable Termination | IDC |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.41 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.33 | |||
| 40 | $ 0.31 | |||
| 80 | $ 0.29 | |||
| 230 | $ 0.27 | |||
| 440 | $ 0.26 | |||
| 1980 | $ 0.23 | |||
Description
General part information
3030-16 Series
16 Position Rectangular Receptacle Connector IDC Gold
