MP8004GQW-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC POE CNTRL 1 CHAN IEEE 802.3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP8004GQW-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC POE CNTRL 1 CHAN IEEE 802.3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP8004GQW-Z |
|---|---|
| Auxiliary Sense | False |
| Current - Supply | 160 µA |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-VFDFN Exposed Pad |
| Power - Max [Max] | 13 W |
| Standards | 802.3af (PoE) |

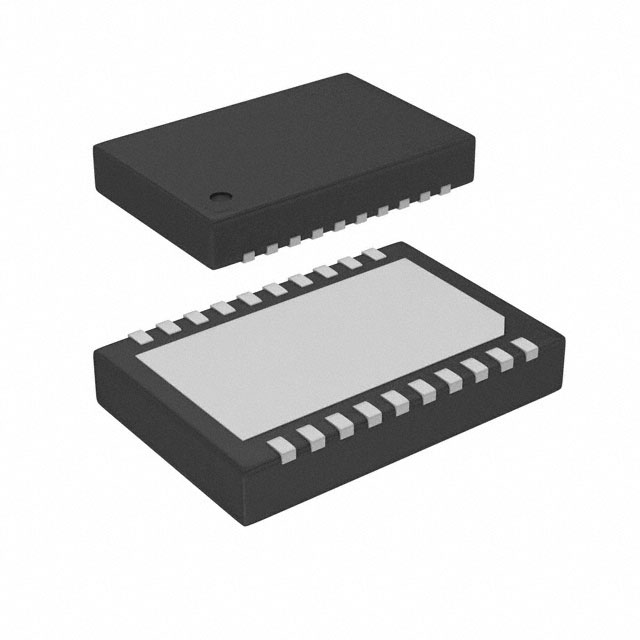

| Supplier Device Package | 20-QFN (4x6) |
| Type | Controller (PD), DC/DC |
| Voltage - Supply [Max] | 57 V |
| Voltage - Supply [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.92 | |
| Digi-Reel® | 1 | $ 2.92 | ||
| Tape & Reel (TR) | 5000 | $ 1.29 | ||
Description
General part information
MP8004 Series
Power Over Ethernet Controller 1 Channel 802.3af (PoE) 20-QFN (4x6)
