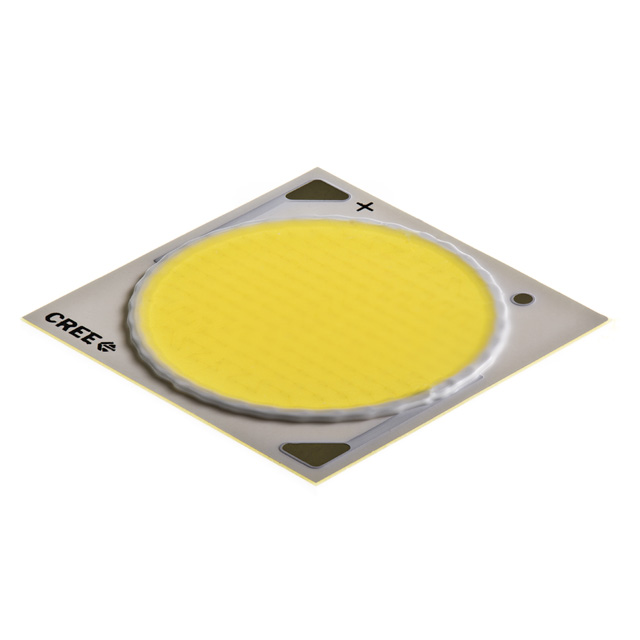

CXA3050-0000-000N0YU430G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXA3050-0000-000N0YU430G

Active

Cree LED

LED COB XLAMP WARM WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA3050-0000-000N0YU430G

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	93
Current - Max [Max]	2.5 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	23 mm
Lumens/Watt @ Current - Test	81 lm/W
Luminous Flux @ Current/Temperature	4093 lm
Luminous Flux @ Current/Temperature [Max]	4230 lm
Luminous Flux @ Current/Temperature [Min]	3955 lm
Size / Dimension [x]	27.35 mm
Size / Dimension [y]	27.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	36 V

CXA3050 Series

...

Part	CCT (K)	Color	Lens Type	Light Emitting Surface (LES) [diameter]	Type	Height [z]	Current - Max [Max]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Temperature - Test	Configuration	CRI (Color Rendering Index)	Viewing Angle
Cree LED CXA3050-0000-000N0YU427H	2700 K	Warm White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A	4093 lm	4230 lm	3955 lm	79 lm/W	37 V	27.35 mm	27.35 mm	85 °C	Square	93	115 °
Cree LED CXA3050-0000-000N00Y250H	5000 K	Cool White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A	6670 lm	6910 lm	6430 lm	129 lm/W	37 V	27.35 mm	27.35 mm	85 °C	Square	70	115 °
Cree LED CXA3050-0000-000N0UV20E5	4000 K	Neutral White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A	4388 lm	4545 lm	4230 lm	85 lm/W	37 V	27.35 mm	27.35 mm	85 °C	Square	90	115 °
Cree LED CXA3050-0000-000N00X250F	5000 K	Cool White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A	5800 lm	6010 lm	5590 lm	112 lm/W	37 V	27.35 mm	27.35 mm	85 °C	Square	70	115 °
Cree LED CXA3050-0000-000N0HX240F	4000 K	Neutral White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A	5800 lm	6010 lm	5590 lm	112 lm/W	37 V	27.35 mm	27.35 mm	85 °C	Square	80	115 °
Cree LED CXA3050-0000-000N0HY240H	4000 K	Neutral White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A	6670 lm	6910 lm	6430 lm	129 lm/W	37 V	27.35 mm	27.35 mm	85 °C	Square	80	115 °
Cree LED CXA3050-0000-000N0UW240G	4000 K	Neutral White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A		5225 lm	4860 lm	100 lm/W	36 V	27.35 mm	27.35 mm	85 °C	Square	90	115 °
Cree LED CXA3050-0000-000N0UV450F	5000 K	Cool White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A	4703 lm			91 lm/W	37 V	27.35 mm	27.35 mm	85 °C	Square	90	115 °
Cree LED CXA3050-0000-000N0YU430G	3000 K	Warm White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A	4093 lm	4230 lm	3955 lm	81 lm/W	36 V	27.35 mm	27.35 mm	85 °C	Square	93	115 °
Cree LED CXA3050-0000-000N0HW40E5	4000 K	Neutral White	Flat	23 mm	Chip On Board (COB)	1.7 mm	2.5 A	5408 lm	5590 lm	5225 lm	104 lm/W	37 V	27.35 mm	27.35 mm	85 °C	Square	80	115 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 16.23

Description

General part information

CXA3050 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA3050 White, Warm Square
