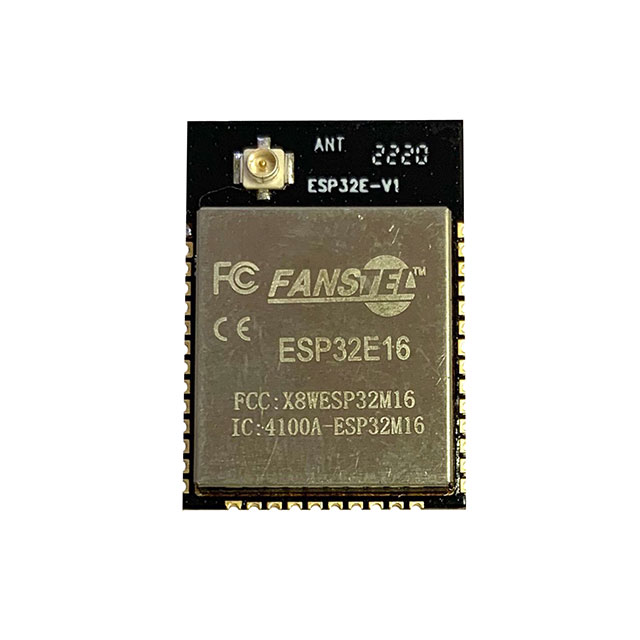

ESP32E16

Active

Fanstel Corp.

WI-FI MODULES, 16MB FLASH, U.FL

Search across all available documentation for this part.

Active

Fanstel Corp.

WI-FI MODULES, 16MB FLASH, U.FL

Technical Specifications

Parameters and characteristics for this part

Specification	ESP32E16

Antenna Type	Antenna Not Included, U.FL
Data Rate	150 Mbps
Frequency	2.4 GHz
Memory Size	16 kB, 16 MB
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	38-SMD Module
Power - Output	23.98 dBm
Protocol	Bluetooth v4.2, 802.11b/g/n
RF Family/Standard	WiFi, Bluetooth
Sensitivity	-97 dBm
Serial Interfaces	I2S, GPIO, PWM, SDIO, I2C, UART, SPI, ADC
Utilized IC / Part	ESP32-D0WD
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	RF Family/Standard	Memory Size	Utilized IC / Part	Sensitivity	Data Rate	Operating Temperature [Min]	Operating Temperature [Max]	Serial Interfaces	Power - Output	Protocol	Frequency	Mounting Type
Fanstel Corp. ESP32E16	Antenna Not Included U.FL	3.6 V	3 V	38-SMD Module	Bluetooth WiFi	16 kB 16 MB	ESP32-D0WD	-97 dBm	150 Mbps	-40 °C	105 ░C	ADC GPIO I2C I2S PWM SDIO SPI UART	23.98 dBm	802.11b/g/n Bluetooth v4.2	2.4 GHz	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount

Technical documentation and resources

No documents available
