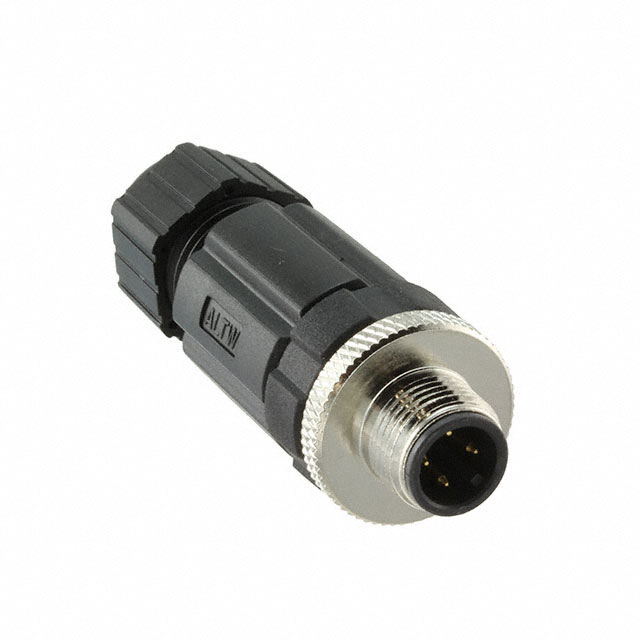

12-04BMMB-SL7001

Obsolete

Amphenol LTW

CONN PLUG MALE 4POS GOLD SCREW

Search across all available documentation for this part.

Obsolete

Amphenol LTW

CONN PLUG MALE 4POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	12-04BMMB-SL7001

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polypropylene (PP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw

Part	Features	Shielding	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Shell Material	Insert Material	Shell Finish	Connector Type	Mounting Type	Orientation	Backshell Material, Plating	Number of Positions	Primary Material	Current Rating (Amps)	Shell Size - Insert	Color	Ingress Protection
Amphenol LTW 12-04BMMB-SL7001	Backshell	Unshielded	Gold	85 °C	-40 °C	Screw	Copper Alloy	Copper Alloy	Polypropylene (PP)	Nickel	Male Pins Plug	Free Hanging (In-Line)	A	Glass Filled Nylon Polyamide (PA)	4	Metal	4 A	M12-4	Black Silver	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Plug, Male Pins Screw
