1115-6128

Active

Amphenol SV Microwave

2.92MM FEMALE TO FEMALE FLANGE M

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.92MM FEMALE TO FEMALE FLANGE M

Technical Specifications

Parameters and characteristics for this part

Part	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Features	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Adapter Series	Frequency - Max [Max]	Mating Cycles	Impedance	Adapter Type	Style	Conversion Type	Body Material	Center Contact Material	Center Contact Plating	Mounting Feature	Dielectric Material	Center Gender	Convert From (Adapter End)	Adapter Series [Max]	Adapter Series [Min]
Amphenol SV Microwave 1115-6126	SMPM Plug Male Pin	2.92 mm	OS-2.9 Jack Female Socket	Full Detent	Snap-On Threaded	-65 ░C	165 °C	SMPM	2.92 mm	40 GHz	500	50 Ohms	Plug to Jack	Straight	Between Series	Stainless Steel	Beryllium Copper	Gold	Flange	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1115-6128	Jack Female Socket OS-2.9	2.92 mm	OS-2.9 Jack Female Socket			-65 ░C	165 °C			40 GHz	500	50 Ohms	Jack to Jack	Straight	Same Series	Stainless Steel	Beryllium Copper	Gold	Flange		Female to Female	2.92 mm	2.92 mm	2.92 mm
Amphenol SV Microwave 1115-6127	SMPM Plug Male Pin	2.92 mm	OS-2.9 Jack Female Socket	Smooth Bore	Snap-On Threaded	-65 ░C	165 °C	SMPM	2.92 mm	40 GHz	500	50 Ohms	Plug to Jack	Straight	Between Series	Stainless Steel	Beryllium Copper	Gold	Flange	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1115-6125	SMP Plug Male Pin	2.92 mm	OS-2.9 Jack Female Socket	Smooth Bore	Snap-On Threaded	-65 ░C	165 °C	SMP to 2.92mm		40 GHz	500	50 Ohms	Plug to Jack	Straight	Between Series	Stainless Steel	Beryllium Copper	Gold	Flange	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

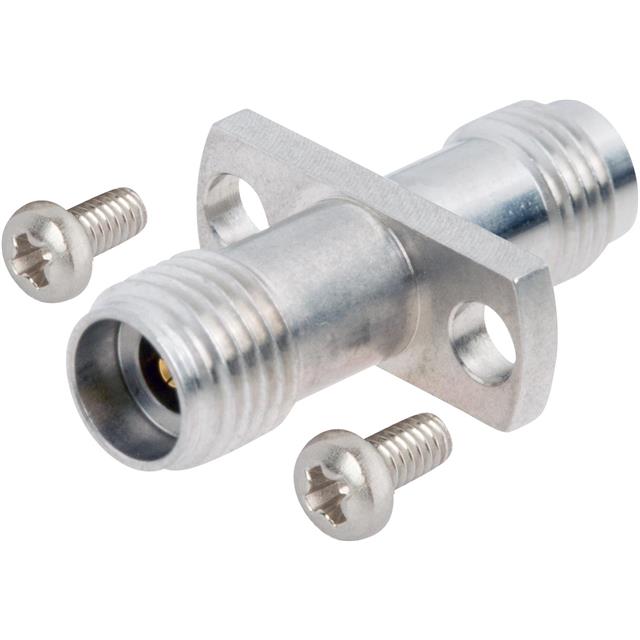

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms
