TTN2.50SV100

Active

Techflex

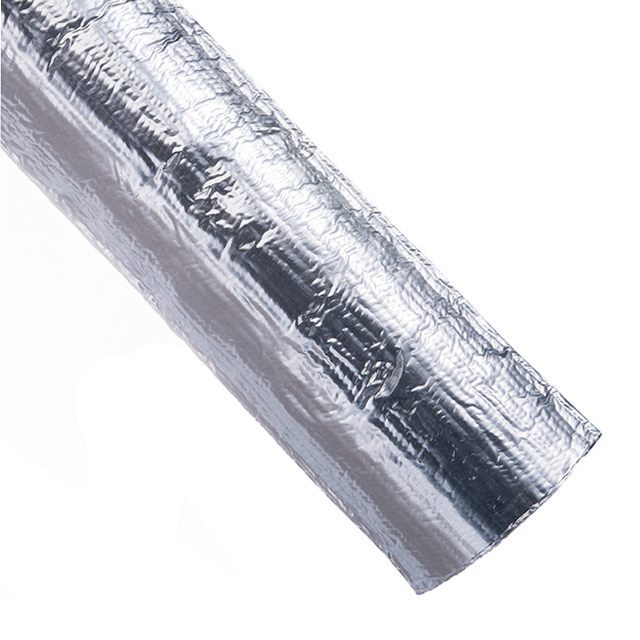

SLEEVING 2.5" ID 100' SILVER

Search across all available documentation for this part.

Active

Techflex

SLEEVING 2.5" ID 100' SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	TTN2.50SV100

Abrasion Protection	Abrasion Resistant
Color	Silver
Diameter - Inside [diameter]	63.5 mm
Diameter - Inside [diameter]	2.5 "
Diameter - Outside [diameter]	2.55 in
Diameter - Outside [diameter]	64.77 mm
Features	Clean Cut, Chemical Resistant
Heat Protection	Flame Retardant, Heat Resistant
Length	100 ft
Length	30.48 m
Liquid Protection	Gasoline Resistant
Material	Halogen Free, Fiberglass, Aluminized
Material Flammability Rating	Non Flammable
Operating Temperature [Max]	255 °C
Operating Temperature [Min]	-60 °C
Type	Sleeving, Insulated
Type Attributes	Convoluted - Braided
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Features	Length	Length	Wall Thickness [custom]	Wall Thickness [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Type Attributes	Heat Protection	Liquid Protection	Color	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type	Material	Abrasion Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material Flammability Rating
Techflex TTN2.50SV100	Chemical Resistant Clean Cut	100 ft	30.48 m	0.025 in	0.64 mm	-60 °C	255 °C	Convoluted - Braided	Flame Retardant Heat Resistant	Gasoline Resistant	Silver	63.5 mm	2.5 "	Sleeving Insulated	Aluminized Fiberglass Halogen Free	Abrasion Resistant	2.55 in	64.77 mm	Non Flammable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 571.22

General part information

Silver Fiberglass, Aluminized, Halogen Free Convoluted - Braided Sleeving, Insulated 2.500" (63.50mm) 100' (30.48m)
