5661-II

Active

BRADY

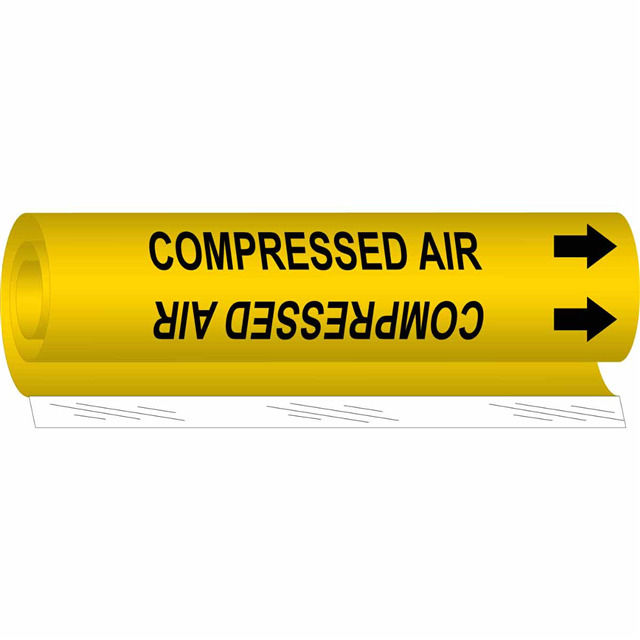

B689 5661-II BLK/YEL STYLE II

Search across all available documentation for this part.

Active

BRADY

B689 5661-II BLK/YEL STYLE II

Technical Specifications

Parameters and characteristics for this part

Specification	5661-II

Application Specifics	Directionality
Applications	Pipe
Arrangement	Symbol and Text
Color - Background	Yellow
Color - Legend	Black
Features	Water Resistant, Weather Resistant, Humidity Resistant, Chemical Resistant, UV Resistant, Abrasion Resistant
Language	English
Legend (Symbol Only)	Directional Arrow
Legend (Text)	Compressed Air
Length	26 in
Length	660.4 mm
Location	Outdoor
Material - Body	Plastic
Mounting Type	Snap On
Outside Pipe Diameter (Max) [diameter]	2.5 "
Outside Pipe Diameter (Max) [diameter]	63.5 mm
Outside Pipe Diameter (Min) [Min] [diameter]	200.03 mm
Outside Pipe Diameter (Min) [Min] [diameter]	7.875 in
Print Type	Pre-Printed
Shape	Rectangle
Width	304.8 mm
Width [x]	12 in

Part	Applications	Color - Legend	Language	Mounting Type	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Length	Length	Features	Print Type	Width	Width [x]	Shape	Arrangement	Material - Body	Color - Background	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Min) [Min] [diameter]	Application Specifics	Legend (Text)	Legend (Symbol Only)	Location	Width [x]	Outside Pipe Diameter (Min) [Min] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Width [y]	Width [y]
BRADY 5661-II	Pipe	Black	English	Snap On	2.5 "	63.5 mm	26 in	660.4 mm	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pre-Printed	304.8 mm	12 in	Rectangle	Symbol and Text	Plastic	Yellow	200.03 mm	7.875 in	Directionality	Compressed Air	Directional Arrow	Outdoor
BRADY 5661-I	Pipe	Black	English	Snap On	1.5 "	38.1 mm	9 "	228.6 mm	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pre-Printed		8 in	Rectangle	Symbol and Text	Plastic	Yellow	60.33 mm	2.375 in	Compressed Air	Compressed Air	Directional Arrow	Outdoor	203.2 mm
BRADY 5661-O	Pipe	Black	English	Snap On			8 in	203.2 mm	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Pre-Printed			Rectangle	Symbol and Text	Plastic	Yellow		1.375 in	Compressed Air	Compressed Air	Directional Arrow	Outdoor		34.93 mm	12.7 mm	0.5 "	127 mm	5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.89

General part information

B689 5661-II BLK/YEL STYLE II
