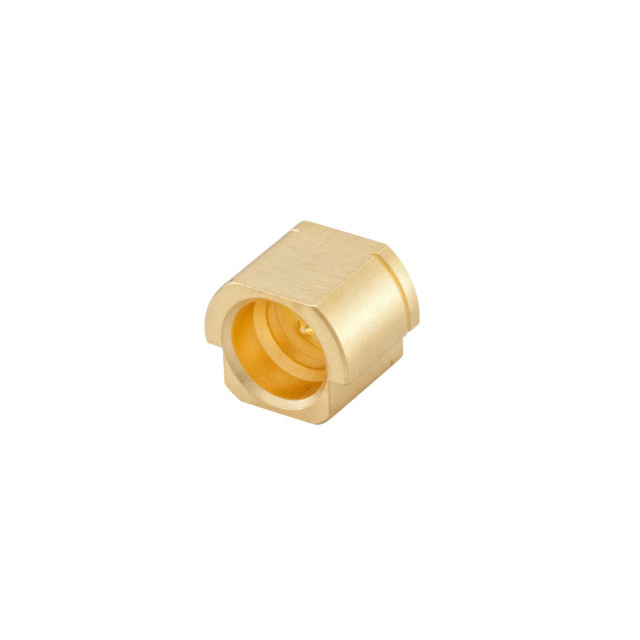

119S242-40ML5

Active

Rosenberger

PSMP RIGHT ANGLE PLUG PCB

Search across all available documentation for this part.

Active

Rosenberger

PSMP RIGHT ANGLE PLUG PCB

Technical Specifications

Parameters and characteristics for this part

Specification	119S242-40ML5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	PSMP
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Smooth Bore
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Center Contact Material	Dielectric Material	Connector Type	Contact Termination	Voltage Rating	Connector Style	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Mating Cycles	Impedance	Housing Color	Body Finish	Shield Termination	Fastening Type	Center Contact Plating	Features	Frequency - Max [Max]	Mounting Type
Rosenberger 119S242-40ML5	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Solder	480 V	PSMP	Brass	-65 ░C	165 °C	1	1000	50 Ohms	Gold	Gold	Solder	Snap-On	Gold	Smooth Bore	10 GHz	Board Edge Cutout Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.62

General part information

PSMP Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
